837-036-520-808

Edgeboard Connectors Overview

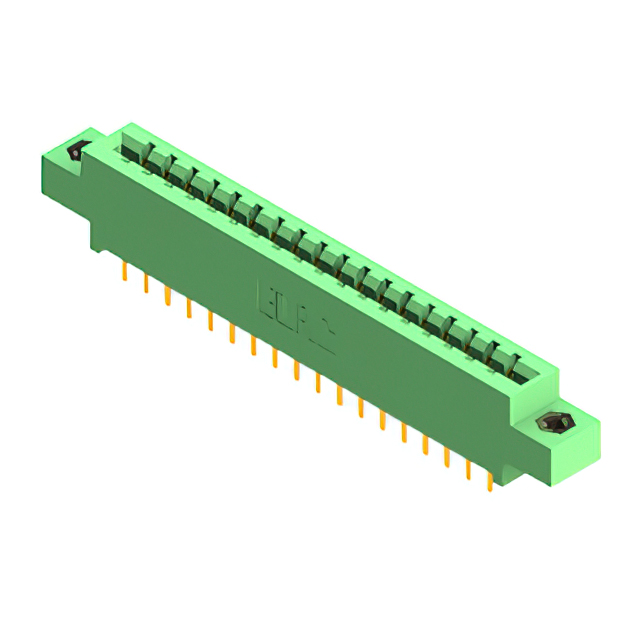

The EDAC Inc. 837-036-520-808 is a standard card edge connector from the 837 High Temp Series, designed for high-temperature environments. It features a dual female configuration with 36 positions and a contact spacing of 0.156 inches (3.96mm). The connector utilizes gold-plated copper alloy contacts and a green thermoplastic polyester insulator. Rated for operation between -40°C and 125°C, it supports board thicknesses from 0.054 to 0.070 inches. This through-hole component ensures reliable electrical connections in demanding industrial applications.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for extreme thermal conditions
• Dual female contact configuration for secure board insertion
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Green thermoplastic polyester insulator providing structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring thermal resilience
• Automotive electronics operating in high-heat zones
• Communication infrastructure hardware
• Medical equipment components
• Railway signaling systems

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to ensure compatibility with design specifications. Confirm that the required temperature range and contact plating meet project standards. Cross-reference the package type and pin count with schematic requirements. Ensure sourcing channels provide authentic components to maintain reliability in critical applications.

Edgeboard Connectors Selection Notes

Select this connector when high-temperature performance and durable gold-plated contacts are essential. The 0.156-inch pitch accommodates standard board layouts while offering robust mechanical retention. Consider the dual female design for mating with single-edge or double-edge cards. Evaluate the thermoplastic insulator material for environmental resistance in harsh operational settings.

Edgeboard Connectors Part Context

This component belongs to the EDAC 837 High Temp Series, specialized for elevated temperature operations. The series emphasizes durability and consistent electrical performance under thermal stress. As a standard card edge connector, it serves as a critical interface between circuit boards and external systems in various electronic assemblies.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers. Ensure any replacement matches the 36-position count, 0.156-inch spacing, and dual female configuration. Verify that substitute components maintain the same high-temperature rating and contact material specifications.
