842-019-500-108

Edgeboard Connectors Overview

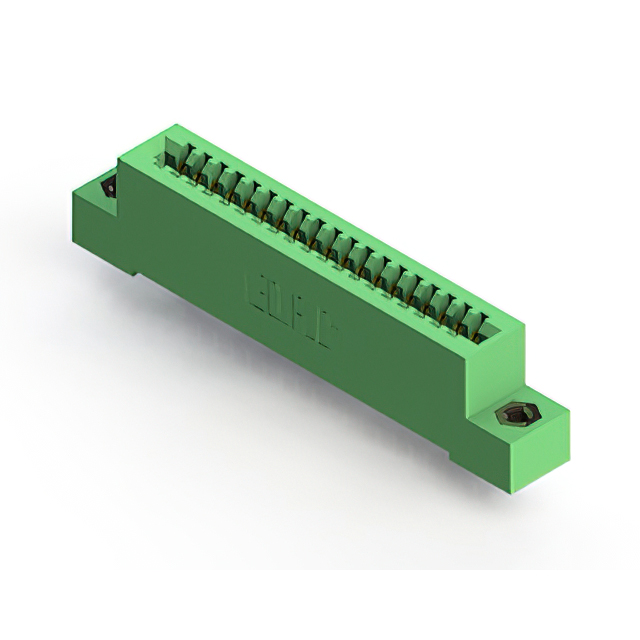

The EDAC Inc. model 842-019-500-108 is a standard single-edge card edge connector designed for through-hole vertical mounting. It features 19 positions with a 0.100 inch (2.54 mm) pitch and accepts a board thickness of 1.57 mm. The contacts are gold-plated copper alloy, providing reliable signal transmission. Rated for 3 A current, the unit utilizes a thermoplastic polyester housing and offers an insulation resistance of 5 GOhms. It operates within a temperature range of -40 C to +105 C.

Edgeboard Connectors Feature Summary

• Vertical through-hole mounting style for secure PCB integration
• Gold-plated copper alloy contacts ensure durable electrical connectivity
• Thermoplastic polyester housing provides structural stability

Edgeboard Connectors Applications

• Standard card edge interconnection systems
• Industrial control modules requiring vertical board insertion
• Electronic assemblies utilizing 1.57 mm thick circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific datasheet for the 842-019-500-108 part number to confirm all mechanical dimensions and material specifications. Ensure compatibility with the target printed circuit board thickness of 1.57 mm before procurement. Cross-reference the manufacturer's official documentation to validate the current production status and any potential obsolescence notices associated with this component series.

Edgeboard Connectors Selection Notes

Select this connector when a single-row, 19-position interface is required for vertical board insertion. The 0.100 inch pitch aligns with standard industry spacing requirements. Verify that the application environment falls within the specified operating temperature range and that the 3 A current rating meets the system's power distribution needs without exceeding thermal limits.

Edgeboard Connectors Part Context

This component belongs to the EDAC standard card edge connector family, characterized by robust construction for general electronic applications. The 842 series typically denotes receptacles designed for mating with edge-board connectors. This specific variant emphasizes vertical orientation and through-hole termination methods suitable for high-reliability industrial environments.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference guide for verified substitute part numbers. Ensure any replacement maintains identical pitch, position count, and mounting configuration.
