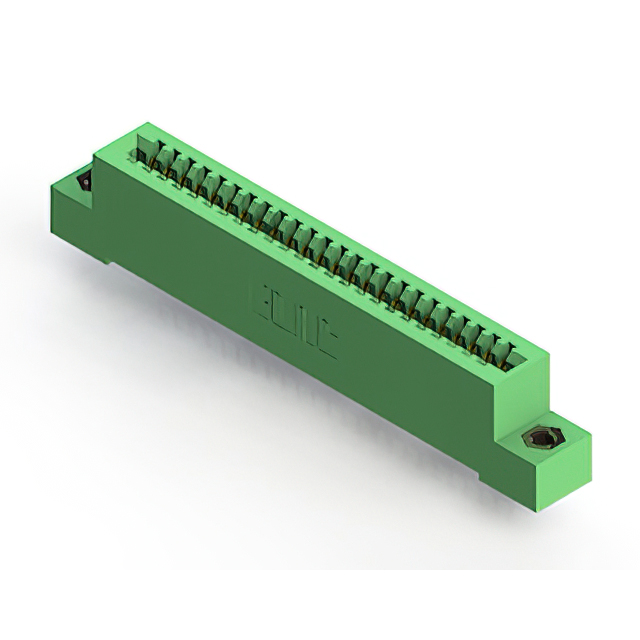

842-024-524-107

$76.80

Description：CONN EDGE SINGLE FML 24POS 0.100
Series：842
Mfr：EDAC Inc.
Package：Box

SKU:6a9859cef5cf Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

842-024-524-107 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 24POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 842-024-524-107

Description：CONN EDGE SINGLE FML 24POS 0.100
Series：842
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：24
Number of Positions：24
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 125°C

Edgeboard Connectors datasheet and documents for 842-024-524-107

842-024-524-107

Edgeboard Connectors Overview

The EDAC Inc. part number 842-024-524-107 is a standard card edge connector from the 842 Series, designed for high-temperature applications. It features a single row with 24 positions and a 0.100 inch (2.54 mm) pitch. The connector utilizes gold-plated copper alloy contacts and a green diallyl phthalate (DAP) housing. It supports a board thickness of 1.57 mm and offers a current rating of 3 A. The unit employs wire wrap termination and is rated for operation between -40 C and +125 C, with an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

High-temperature resistant construction suitable for demanding thermal environments
Gold-plated contacts ensure reliable signal transmission and corrosion resistance
Green DAP insulator provides robust mechanical stability and electrical isolation

Edgeboard Connectors Applications

Industrial control systems requiring thermal resilience
Medical interconnect solutions
Agricultural technology equipment operating in harsh conditions

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version to confirm RoHS compliance details and exact physical dimensions before integration. Ensure that the target PCB design accommodates the specified 1.57 mm board thickness and wire wrap termination style. Cross-reference the 24-position count and single-row configuration against schematic requirements to prevent assembly mismatches during production.

Edgeboard Connectors Selection Notes

Select this component when high-temperature performance is critical for the application environment. The wire wrap termination method requires compatible PCB layout strategies distinct from solder-based connections. Consider the green DAP housing material properties for chemical resistance if exposed to specific industrial agents. Verify that the 3 A current rating aligns with the maximum load requirements of the connected circuitry.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 842 Series, which specializes in high-temperature card edge solutions. The series is engineered for durability in challenging sectors such as medical and agricultural technologies. It complements other EDAC products by offering specialized thermal ratings and robust contact plating options for reliable long-term connectivity.
