842-046-524-201

Edgeboard Connectors Overview

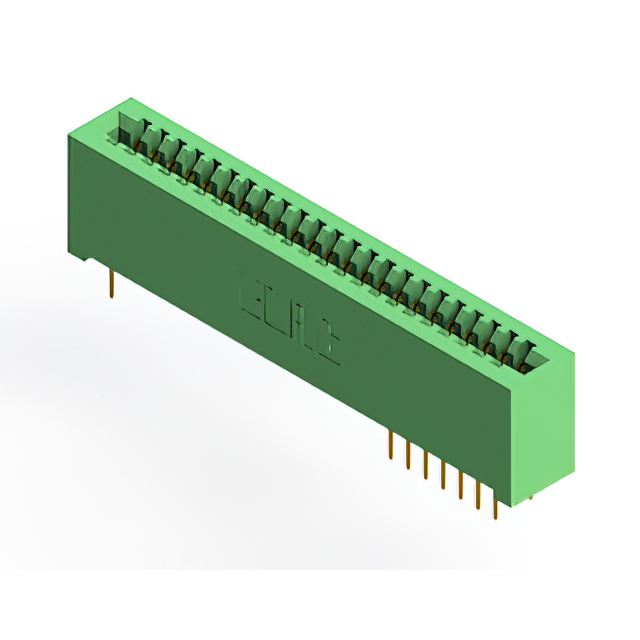

The EDAC Inc. model 842-046-524-201 is a standard card edge connector receptacle featuring 46 positions arranged in two rows. It utilizes a 0.1-inch (2.54 mm) contact spacing and supports a maximum current rating of 3 A. The unit employs gold-plated copper alloy contacts with a solder pin termination style for secure PCB attachment. Designed for vertical panel mount installation, the housing is constructed from green insulator material to ensure reliable signal transmission in electronic assemblies.

Edgeboard Connectors Feature Summary

• Dual-row female configuration providing 46 connection points
• Gold-plated copper alloy contacts for corrosion resistance
• Solder pin termination for robust through-hole mounting

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Computer peripheral interface modules

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with the manufacturer or authorized distributor before procurement. Confirm that the panel cutout dimensions align precisely with the connector's mechanical specifications to ensure proper fitment. Check for any recent supply chain restrictions or component obsolescence notices associated with this part number.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with 46 positions is required. Ensure the mating card thickness matches the connector's design specifications. Verify that the operating environment temperature range falls within the rated limits of the DAP insulator material. Confirm that the vertical orientation fits the available chassis space constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 842 series of high-temperature card edge connectors. The series is characterized by its durable construction and suitability for demanding industrial applications. The 842 series offers various position counts and row configurations to accommodate diverse board-to-board connectivity requirements.

Edgeboard Connectors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer for direct cross-reference information or equivalent alternatives if this specific part is unavailable.
