845-017-520-407

Edgeboard Connectors Overview

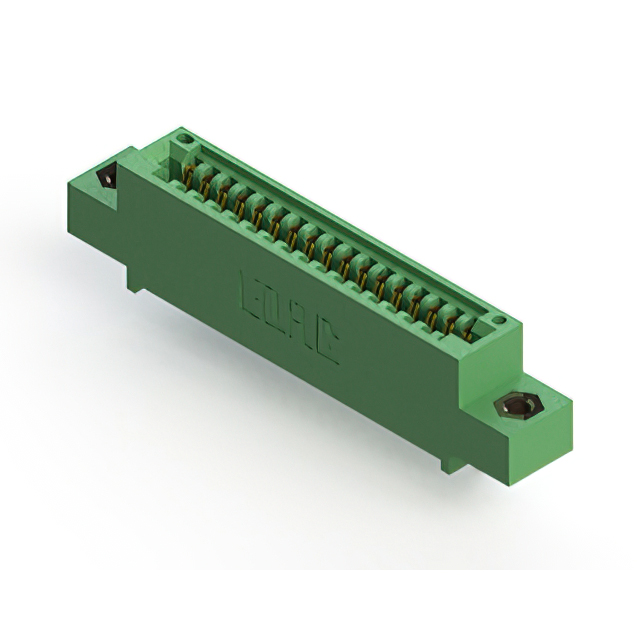

The EDAC Inc. 845-017-520-407 is a standard card edge connector from the 845 High Temp Series, designed for single-edge board insertion. It features 17 positions with a 0.100 inch (2.54 mm) pitch and utilizes gold-plated copper alloy contacts. The unit employs wire wrap termination and is constructed with a green diallyl phthalate (DAP) insulator. Rated for 3 A current, it supports panel mounting in a vertical orientation and operates within a temperature range of -40 C to +125 C.

Edgeboard Connectors Feature Summary

• High-temperature rated construction using DAP insulator material
• Gold-plated copper alloy contacts for reliable signal transmission
• Wire wrap termination method for secure circuit board connection

Edgeboard Connectors Applications

• Industrial control systems requiring high thermal stability
• Automotive electronics applications
• Aerospace and defense equipment
• Medical device instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count and termination style. Confirm availability status as distribution channels may vary. Ensure compatibility with target PCB thickness and panel mounting requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical card edge connector is required for high-temperature environments. The 17-position configuration suits moderate density interconnect needs. Verify that the wire wrap termination aligns with the assembly process and that the 3 A current rating meets the electrical load requirements of the application.

Edgeboard Connectors Part Context

This part belongs to the EDAC 845 High Temp Series, which specializes in connectors capable of withstanding elevated operating temperatures. The series utilizes durable DAP materials and gold contacts to ensure performance in demanding industrial, automotive, and aerospace sectors where standard connectors might fail due to heat stress.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference lists for verified substitutes. Ensure replacement parts maintain identical position counts, pitch dimensions, and termination types to guarantee mechanical and electrical compatibility without redesigning the host assembly.
