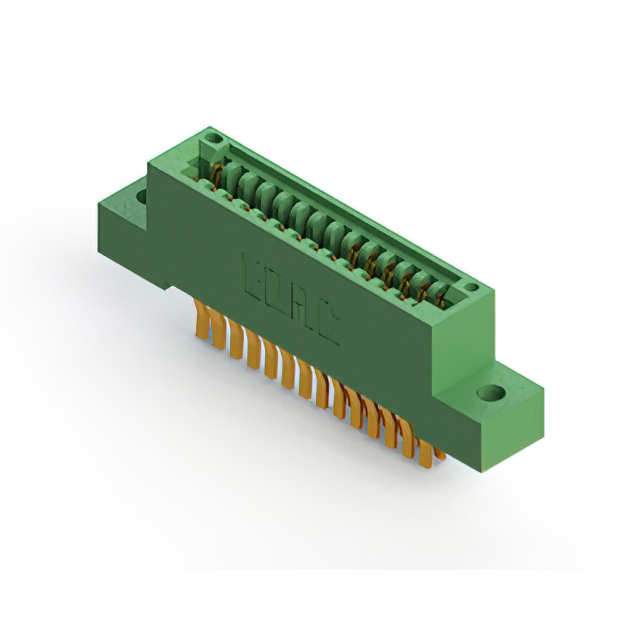

845-028-560-202 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 28POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 845-028-560-202
- Description：CONN EDGE DUAL FMALE 28POS 0.100
- Series：845
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：14
- Number of Positions：28
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：Card Extender
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 845-028-560-202
Edgeboard Connectors Overview
The EDAC Inc. 845-028-560-202 is a single-row, dual-edge card edge connector designed for through-hole mounting. It features 28 positions with a 0.100-inch (2.54mm) contact spacing and a 0.200-inch (5.08mm) row spacing. The connector utilizes female contacts with gold plating and a green insulator body made of DAP material. It accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm).
Edgeboard Connectors Feature Summary
- Dual-edge configuration supports connection to both sides of the PCB.
- High-profile insulator body accommodates specific board thickness requirements.
- Gold-plated female contacts ensure reliable signal transmission.
Edgeboard Connectors Applications
- Industrial control systems requiring robust card connections
- Communication equipment interface modules
- Automotive electronics board integration
Edgeboard Connectors Procurement Notes
Verify the exact part number against official EDAC documentation to confirm current availability status. Check for any obsolescence notices or lifecycle changes directly from the manufacturer. Ensure that the required board thickness matches the connector specifications before ordering.
Edgeboard Connectors Selection Notes
Select this component when a dual-edge connection is required for a 28-position interface. Confirm that the PCB design allows for the specified 0.062-inch thickness. Evaluate thermal and environmental conditions to ensure compatibility with the operating temperature range defined in the datasheet.
Edgeboard Connectors Part Context
This component belongs to the 845 High Temp series by EDAC Inc., which focuses on high-temperature performance and durability. The series offers various pin counts and configurations for card edge applications, providing standardized solutions for industrial and commercial electronic assemblies.
Edgeboard Connectors Replacement Considerations
Consult official EDAC substitution guides for verified alternatives. Generic cross-references may not match the specific dual-edge geometry or high-temperature ratings required for this application.
