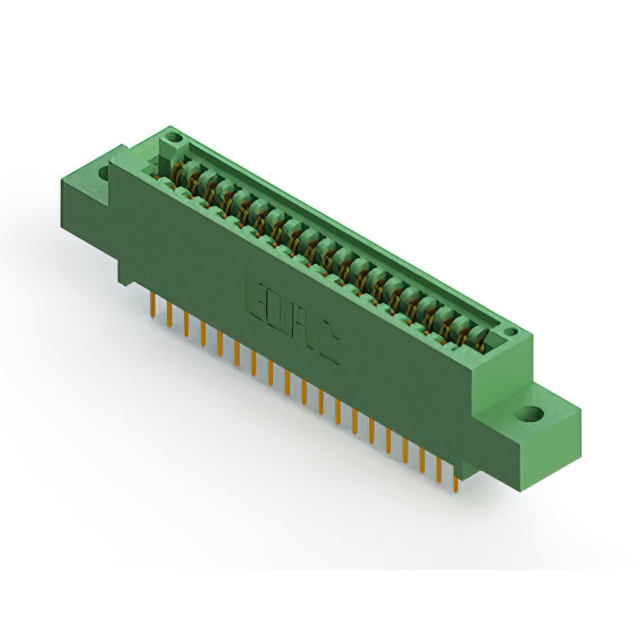

845-038-524-502 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 38POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 845-038-524-502
- Description：CONN EDGE DUAL FMALE 38POS 0.100
- Series：845
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：19
- Number of Positions：38
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 845-038-524-502
Edgeboard Connectors Overview
The EDAC Inc. part number 845-038-524-502 is a standard card edge connector from the 845 High Temp series. It features 38 positions with a 0.100 inch (2.54 mm) contact spacing. The connector is designed for dual-edge card applications and utilizes female contacts. The housing is constructed from green Diallyl Phthalate (DAP) material, providing high thermal stability. Contact plating is gold over copper alloy to ensure reliable signal transmission.
Edgeboard Connectors Feature Summary
- Dual-edge configuration supports insertion of cards from both sides
- High temperature resistant DAP insulator material
- Gold-plated female contacts for durability
Edgeboard Connectors Applications
- High-temperature electronic module interconnects
- Industrial control system backplanes
- Aerospace communication equipment interfaces
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against the manufacturer's current ordering guide to confirm exact tail length and termination style. Confirm that the dual-edge requirement matches the target PCB design. Check for updated lead times as distribution availability may vary by region.
Edgeboard Connectors Selection Notes
Select this component when a dual-sided entry connector is required for robust mechanical retention. Ensure the mating card thickness falls within the specified tolerance range. Verify that the operating environment does not exceed the maximum rated temperature for the DAP insulation.
Edgeboard Connectors Part Context
This connector belongs to the 845 series, which is engineered for demanding environments requiring elevated temperature performance. The series offers various position counts and termination options to accommodate different board density requirements in professional electronics.
Edgeboard Connectors Replacement Considerations
Cross-reference with other 845 series variants for alternative pin counts. Verify compatibility with existing panel mounting hardware and card edge dimensions before substitution.
