Edgeboard Connectors Overview

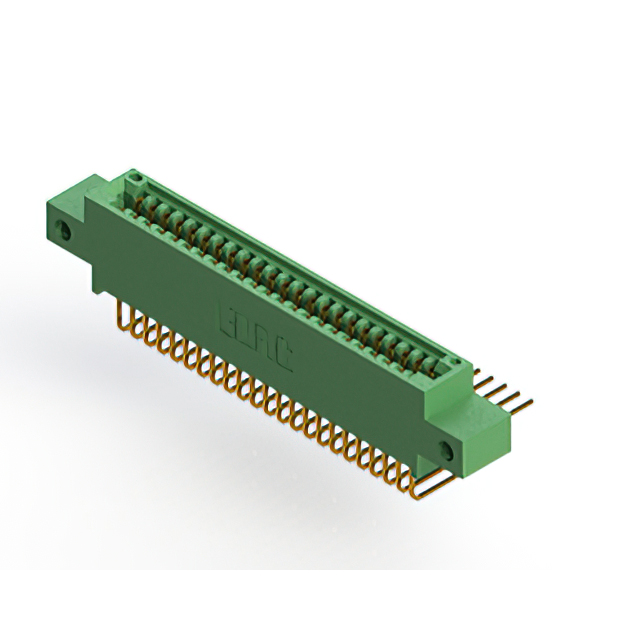

The EDAC Inc. 845-046-558-812 is a standard card edge connector from the 845 High Temp series, designed for panel mount applications. It features a dual-edge female configuration with 46 positions and a 0.100 inch (2.54 mm) pitch. The contacts are gold-plated copper alloy, housed in green diallyl phthalate (DAP). Rated for 3 A current, it operates between -40°C and +125°C with 5 GOhms insulation resistance.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts for reliable conductivity
• Green diallyl phthalate housing material for thermal stability

Edgeboard Connectors Applications

• High-temperature electronic assemblies
• Panel-mounted circuit board interconnections
• Industrial control system hardware

Edgeboard Connectors Procurement Notes

Verify the specific suffix code to confirm the exact termination style and plating thickness required for your assembly process. Confirm that the dual-edge design matches the target PCB slot geometry. Ensure the panel mounting requirements align with the vertical installation orientation specified in the official datasheet.

Edgeboard Connectors Selection Notes

Select this component when a high-temperature rated connector is necessary for vertical panel mounting. The 46-position count suits moderate-density signal routing. Verify that the 3 A current rating meets the electrical load requirements of the application circuits before finalizing the design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 845 series, which specializes in high-temperature performance connectors. The series utilizes durable DAP materials to withstand elevated operating conditions. This specific model represents a dual-edge variant within the broader family of standard card edge solutions offered by EDAC Inc.

Edgeboard Connectors Replacement Considerations

Cross-reference compatible parts within the EDAC 845 series that share the same 46-position count and dual-edge interface. Verify that any substitute maintains the identical 0.100 inch pitch and panel mount orientation to ensure mechanical compatibility.
