845-063-500-102

Edgeboard Connectors Overview

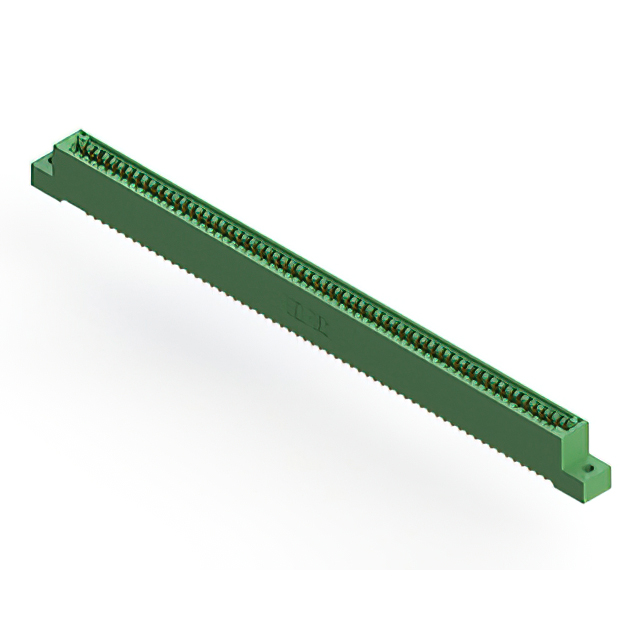

The EDAC Inc. 845-063-500-102 is a standard card edge connector from the 845 series, designed for single-edge board applications. It features 63 positions with a 0.100 inch (2.54 mm) pitch. The connector utilizes gold-plated copper alloy contacts and a green diallyl phthalate (DAP) housing. It supports a current rating of 3 A and operates within a temperature range of -40°C to +125°C. The unit employs through-hole termination via solder eyelets and is configured for panel mounting.

Edgeboard Connectors Feature Summary

• Utilizes gold-plated copper alloy contacts for reliable signal transmission
• Constructed with durable diallyl phthalate (DAP) housing material
• Supports high-temperature operation up to 125°C
• Features single-row configuration for standard card edge interfaces

Edgeboard Connectors Applications

• Single-edge card edge interconnections
• Panel-mounted electronic assemblies
• High-temperature circuit board connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to ensure correct termination style and orientation. Confirm that the required contact finish thickness meets application standards. Cross-reference the position count and pitch specifications with the target PCB design to guarantee mechanical compatibility before procurement.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 63-position interface is required with through-hole solder eyelet termination. Ensure the design accommodates the specified 0.100 inch pitch and panel mounting constraints. Verify that the operating environment remains within the -40°C to +125°C thermal limits defined by the DAP housing and gold contact specifications.

Edgeboard Connectors Part Context

This part belongs to the EDAC 845 series of edgeboard connectors, which are engineered for robust performance in demanding environments. The series offers various configurations including different row counts and termination styles, utilizing standardized materials like DAP and gold plating to ensure consistent electrical and mechanical reliability across industrial applications.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Consult official EDAC catalogs for cross-referencing similar series components or updated revisions.
