857-078-520-207

Edgeboard Connectors Overview

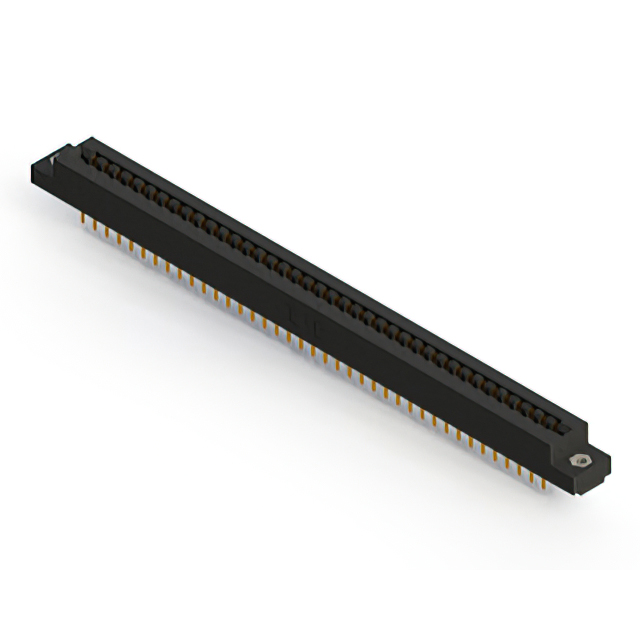

The EDAC Inc. 857-078-520-207 is a standard card edge connector featuring 78 positions with a dual female contact configuration. It utilizes a 3.96 mm (0.156 inch) pitch and operates within a temperature range of -40°C to +105°C. The contacts are gold-plated copper alloy, housed in a black thermoplastic insulator. Designed for panel mounting, this component supports high-temperature applications and provides reliable electrical interconnection for double-sided PCBs.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure double-sided board insertion
• Gold-plated copper alloy contacts ensure stable signal transmission
• Thermoplastic housing rated for high-temperature operational environments

Edgeboard Connectors Applications

• High-temperature industrial control systems
• Telecommunications equipment backplanes
• Medical device circuit boards
• Energy sector instrumentation modules

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version for the 857-078-520-207 to confirm current RoHS compliance status and detailed dimensional tolerances. Ensure that the receiving facility has the capability to handle panel-mount connectors properly during installation. Cross-reference the official EDAC documentation for any recent updates regarding material specifications or environmental certifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row interface with a 3.96 mm pitch is required for double-sided printed circuit boards. The high-temperature rating makes it suitable for environments exceeding standard operating limits. Verify that the PCB edge thickness matches the connector's acceptance criteria to ensure proper mechanical retention and electrical contact integrity during assembly.

Edgeboard Connectors Part Context

This component belongs to the EDAC 857 series of high-temperature card edge connectors. The series is characterized by robust construction and extended thermal stability compared to standard variants. It serves as a critical interconnect solution in sectors requiring durable connections under thermal stress, complementing other EDAC header and D-sub product lines.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference guide for verified substitute part numbers. Generic equivalents may not match the specific high-temperature ratings or dimensional tolerances required for panel-mounted installations. Always validate pinout compatibility and mechanical fit before substituting.
