887-006-500-103

Edgeboard Connectors Overview

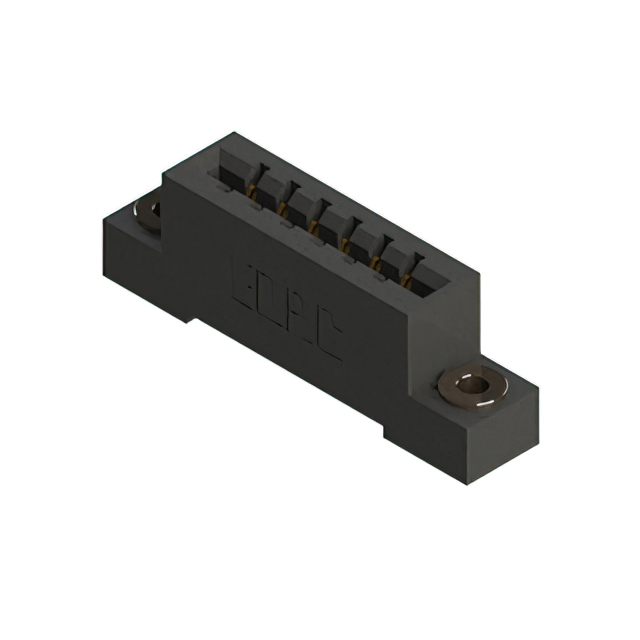

The EDAC Inc. 887-006-500-103 is a standard card edge connector receptacle from the 887 series, designed for high-temperature applications. It features six positions with a 0.156-inch (3.96mm) pitch and accommodates a single-edge non-specified card type. The connector supports a board thickness range of 0.054 to 0.070 inches (1.37 to 1.78mm). Constructed with a black polyphenylene sulfide (PPS) housing and copper alloy contacts, it offers gold plating on the contact interface. Rated for 3A current, it operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature capability utilizing PPS insulator material rated up to +125°C
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Panel mount vertical installation style with solder pin termination

Edgeboard Connectors Applications

• Industrial control systems requiring thermal stability
• Telecommunications equipment interfaces
• Medical device internal connections
• Energy sector hardware modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to confirm exact tail pin style and mounting ear configuration. Ensure the target PCB design matches the required 0.054 to 0.070 inch thickness specification. Confirm that the panel mount orientation aligns with the system enclosure requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when high-temperature resistance is critical for the application environment. The 0.156-inch pitch suits standard card edge designs requiring robust mechanical connection. Consider the vertical panel mount style if space constraints favor direct chassis integration over board-to-board stacking.

Edgeboard Connectors Part Context

This part belongs to the EDAC 887 series, a line of high-temperature card edge connectors. The series is characterized by its durable PPS housing and versatile mounting options. It serves as a reliable interconnection solution in demanding environments where standard connectors might fail due to thermal stress or mechanical vibration.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 887 series selection guide for compatible substitutes. Verify identical pitch, position count, and termination style when evaluating alternative part numbers to maintain mechanical and electrical compatibility.
