887-042-559-608

Edgeboard Connectors Overview

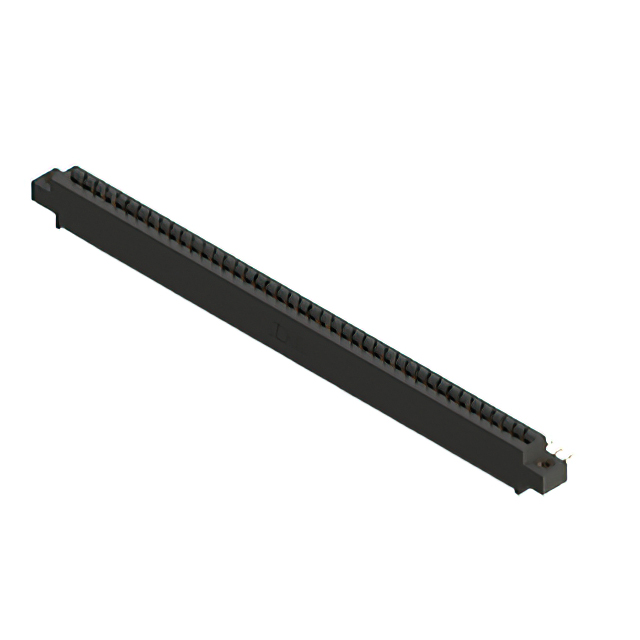

The EDAC Inc. 887-042-559-608 is a high-temperature standard card edge connector from the 887 series, designed for single-row applications. It features 42 positions with a 3.96 mm pitch and accommodates PCBs of 1.57 mm thickness. The component utilizes copper alloy contacts with gold plating and a polyphenylene sulfide (PPS) insulator rated UL 94V-0. Rated for 3 A current, it operates between -40°C and +125°C. Installation is achieved via solder pin termination in a right-angle panel mount configuration.

Edgeboard Connectors Feature Summary

• Constructed with polyphenylene sulfide insulation for enhanced thermal stability
• Features gold-plated copper alloy contacts for reliable signal transmission
• Designed for right-angle panel mounting with solder pin termination

Edgeboard Connectors Applications

• High-temperature electronic interconnect systems
• Industrial control board connections
• Aerospace and defense circuit interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact flange and termination configurations. Ensure compatibility with the target PCB thickness of 1.57 mm and validate that the right-angle panel mount style aligns with mechanical enclosure requirements before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this model when high thermal resistance is required, as indicated by the PPS material and +125°C rating. The 42-position count and 3.96 mm pitch define the interface density. Confirm that the right-angle orientation and solder pin termination suit the assembly process and spatial constraints of the design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 887 series of high-temperature card edge connectors. The series offers various contact counts and termination styles, utilizing robust materials like PPS for superior heat performance compared to standard thermoplastics. It serves as a durable solution for demanding environments requiring stable electrical connections.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 887 Series Ordering Guide for verified substitute part numbers. Cross-reference position counts, pitch, and termination types to ensure functional equivalence without altering mechanical fit or electrical ratings.
