887-086-500-808

Edgeboard Connectors Overview

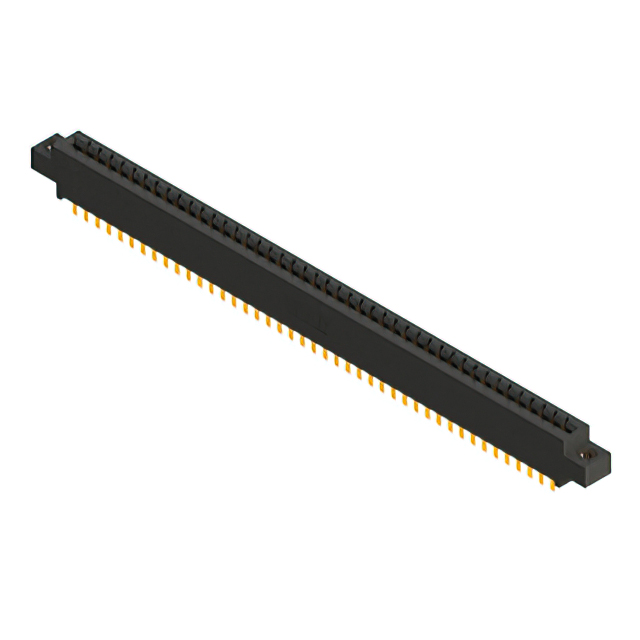

The EDAC Inc. 887-086-500-808 is a high-temperature card edge receptacle from the 887 series, designed for dual-edge board insertion. It features 86 positions with a 3.96 mm (0.156 inch) pitch and a 5.08 mm row spacing. The connector accommodates a board thickness of 1.57 mm (0.062 inch). Constructed with a polyphenylene sulfide (PPS) insulator rated UL 94V-0, it supports operation between -40°C and +125°C. Contacts are copper alloy with gold plating, rated for 3 A current and 1800 V AC rms dielectric strength. Insulation resistance exceeds 5 GOhms.

Edgeboard Connectors Feature Summary

• High-temperature PPS insulator material for thermal stability
• Dual-edge contact configuration for secure board retention
• Gold-plated copper alloy contacts ensuring reliable signal transmission
• UL 94V-0 certified housing material

Edgeboard Connectors Applications

• Medical interconnect systems requiring high thermal tolerance
• Industrial control modules operating in elevated temperature environments
• Agricultural technology equipment exposed to harsh conditions
• Communication infrastructure hardware

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized EDAC distributors or official manufacturer channels. Confirm that the specific suffix matches the required termination style and mounting option, as these variations define physical compatibility. Request updated RoHS compliance documentation and material safety data sheets prior to final procurement to ensure adherence to current regulatory standards and project specifications.

Edgeboard Connectors Selection Notes

Select this model when dual-edge board connectivity is required alongside high-temperature performance capabilities. The 86-position count suits applications needing substantial I/O density within a standard 3.96 mm pitch footprint. Ensure the mating PCB thickness aligns with the specified 1.57 mm requirement. Consider the PPS housing material if chemical resistance and flame retardancy are critical design constraints for the target environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 887 series, which specializes in high-temperature card edge connectors. The series utilizes polyphenylene sulfide (PPS) insulators, distinguishing it from lower-temperature DAP-based variants. The 887 series offers various mounting options and termination styles, providing flexibility for panel mount or through-hole integration in demanding electronic assemblies.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include other 887-series part numbers with matching position counts and termination types. Verify pinout compatibility and mechanical dimensions before substitution. Cross-reference with EDAC's official replacement guide to identify equivalent components with identical electrical ratings and environmental tolerances.
