88CNQ060ASM

Description：DIODE ARRAY SCHOT 60V 40A D618SM
Series：-

SKU:b34630158856 Category: Diode Arrays Brand: Vishay General Semiconductor - Diodes Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE ARRAY SCHOT 60V 40A D618SM
Series：-
Mfr：Vishay General Semiconductor - Diodes Division
Package：Bulk
Diode Configuration：1 Pair Common Cathode
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：60 V
Current - Average Rectified (Io) (per Diode)：40A
Voltage - Forward (Vf) (Max) @ If：580 mV @ 40 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：640 µA @ 60 V
Operating Temperature - Junction：-55°C ~ 150°C
Mounting Type：Through Hole
Package / Case：D-61-8-SM
Supplier Device Package：D-61-8-SM
Grade：-
Qualification：-

Download product information

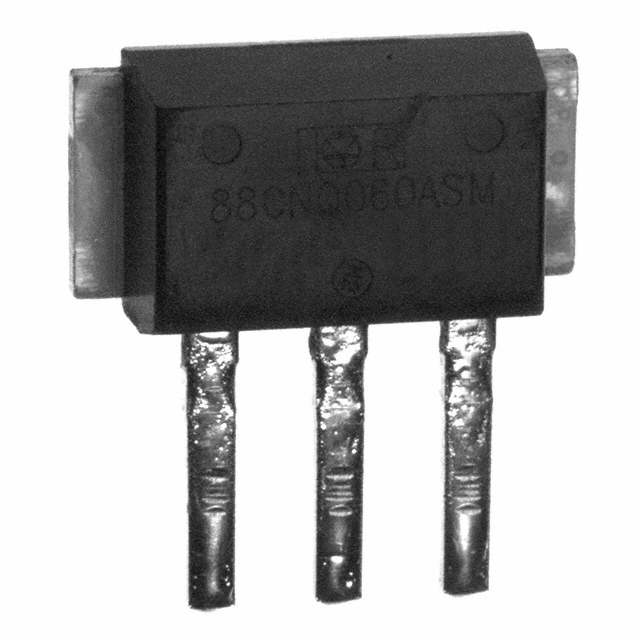

88CNQ060ASM

Overview

The 88CNQ060ASM is a center-tap Schottky rectifier module from the 88CNQ060A series, manufactured by Vishay General Semiconductor - Diodes Division. It utilizes proprietary barrier technology to achieve very low forward voltage drop while maintaining moderate leakage current. The device supports reliable operation up to a junction temperature of 150°C and features high purity, high-temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.

Feature Summary

Center tap configuration optimized for low forward voltage drop
Reliable operation up to 150°C junction temperature
High purity, high temperature epoxy encapsulation for mechanical strength and moisture resistance
Guard ring design for enhanced ruggedness and long term reliability

Applications

Switching power supplies
Converters
Free wheeling diodes
Reverse battery protection

Procurement Notes

Verify the manufacturer designation as Vishay General Semiconductor - Diodes Division, noting the datasheet origin from IRF.com indicates historical lineage. Confirm the specific suffix 'ASM' corresponds to the D61-8-SM surface mount outline when sourcing. Ensure the component meets Industrial Level qualification standards required for the intended application environment.

Selection Notes

Select this module for applications requiring high frequency operation and low forward voltage drop. Consider the thermal resistance characteristics and the requirement for a smooth, greased mounting surface to achieve optimal heat dissipation. Evaluate the peak surge current capabilities against potential transient loads in the circuit design.

Part Context

This component belongs to the 88CNQ...A series of center tap Schottky rectifier modules. It is housed in the New GenIII D-61 Package, specifically the D61-8-SM outline for the ASM variant. The series is designed for industrial level applications, offering a fully transfer-molded low profile with a small footprint suitable for high current requirements.

Replacement Considerations

Compatible variants within the same series include 88CNQ060A (through-hole) and 88CNQ060ASL (leadless). Verify pinout compatibility and thermal interface requirements when substituting between package styles.
