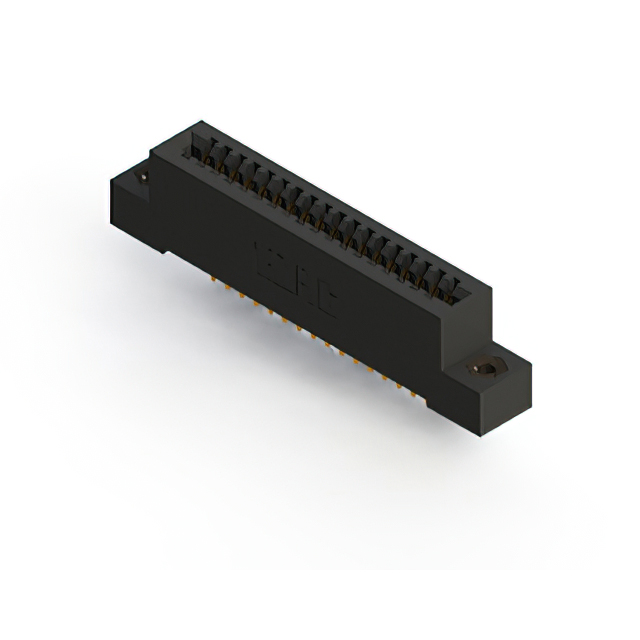

892-018-542-108 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 18POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 892-018-542-108
- Description：CONN EDGE SINGLE FML 18POS 0.100
- Series：892
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：18
- Number of Positions：18
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 892-018-542-108
Edgeboard Connectors Overview
The EDAC Inc. 892-018-542-108 is a standard card edge connector receptacle designed for high-temperature applications. It features an 18-position single-row female configuration with a 0.100 inch (2.54 mm) contact spacing. The unit utilizes gold-plated copper alloy contacts and a black polyphenylene sulfide (PPS) housing. Termination is achieved via wire wrap, and the connector supports panel mount installation in a vertical orientation. It operates within a temperature range of -40°C to +125°C.
Edgeboard Connectors Feature Summary
- High-temperature rated construction suitable for demanding environments
- Gold-plated contacts ensure reliable signal transmission
- Wire wrap termination provides secure board connection
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- High-temperature electronic assemblies
- Panel-mounted circuit board interfaces
Edgeboard Connectors Procurement Notes
Verify the specific series designation and termination style against the official datasheet before procurement. Confirm that the panel mount vertical orientation aligns with the mechanical design requirements. Ensure the operating temperature range meets the environmental conditions of the target application. Cross-reference the manufacturer part number to avoid confusion with similar series variants.
Edgeboard Connectors Selection Notes
Select this component when a single-row female connector with wire wrap termination is required. The 0.100 inch pitch accommodates standard card edge layouts. Consider the PPS material properties for thermal stability. Verify compatibility with the specific card thickness and panel mounting constraints prior to integration into the final assembly design.
Edgeboard Connectors Part Context
This component belongs to the EDAC 892 series of standard card edge connectors. The series offers various position counts and termination options. The 892-018 variant specifically addresses needs for moderate pin counts with high-temperature resilience. It serves as a reliable interface solution between flexible or rigid circuit boards and panel-mounted infrastructure.
Edgeboard Connectors FAQ
What is the termination method for this connector?
The 892-018-542-108 uses a wire wrap termination method.
Is this connector suitable for high-temperature environments?
Yes, it is rated for operation up to +125°C.
