892-084-555-202

Edgeboard Connectors Overview

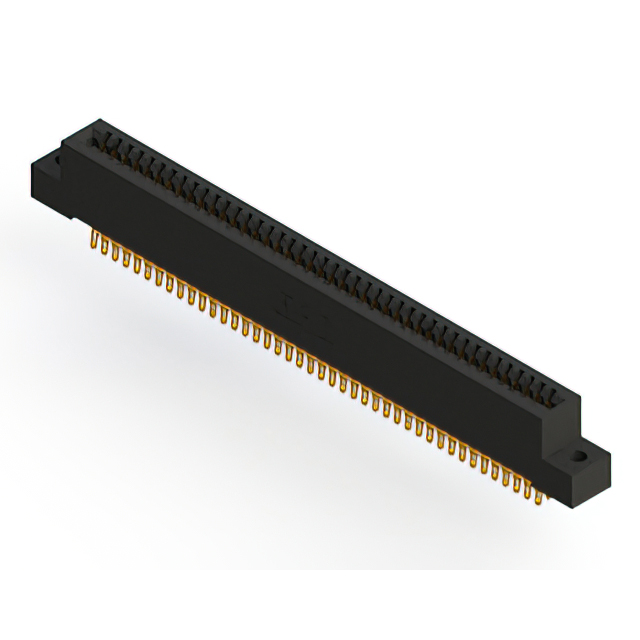

The EDAC Inc. 892-084-555-202 is a standard card edge connector receptacle designed for high-temperature applications. It features 84 positions arranged in a dual-row configuration with a 0.100" (2.54mm) contact spacing and 0.200" (5.08mm) row spacing. The connector accepts printed circuit boards with a nominal thickness of 0.062" (1.57mm). Constructed with copper alloy contacts featuring gold plating, the housing is made of black polyphenylene sulfide (PPS). It utilizes a panel mount installation style with vertical orientation and solder pin termination.

Edgeboard Connectors Feature Summary

• High-profile insulator body constructed from polyphenylene sulfide for thermal stability
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Dual-edge female interface compatible with specified board thicknesses
• Panel mount design with vertical orientation for secure integration

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature reliability
• Medical interconnect solutions
• Communication equipment infrastructure
• Energy sector hardware assemblies

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized EDAC distributors or Northern Technologies channels. Confirm that the specific ordering suffix matches the required flange and termination specifications. Ensure compliance with RoHS3 and REACH standards as documented in official datasheets. Validate supply chain integrity to avoid counterfeit components in critical industrial deployments.

Edgeboard Connectors Selection Notes

Select this model when a dual-edge card edge connector with 0.100 inch spacing is required for panel-mounted applications. The 84-position count suits designs needing substantial I/O density within a single connector footprint. Verify that the target PCB thickness aligns with the 0.062 inch nominal specification. Consider the high-temperature rating if the operating environment exceeds standard commercial limits.

Edgeboard Connectors Part Context

This component belongs to the EDAC 892 series of standard card edge connectors. The series is characterized by robust construction suitable for demanding environments. EDAC, now part of Northern Technologies, provides these interconnect solutions for various sectors including medical, industrial, and communication fields. The 892 series emphasizes durability and consistent electrical performance across diverse application scenarios.

Edgeboard Connectors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Users should consult official EDAC or Northern Technologies catalogs for direct equivalents or cross-reference options based on specific mechanical and electrical requirements.
