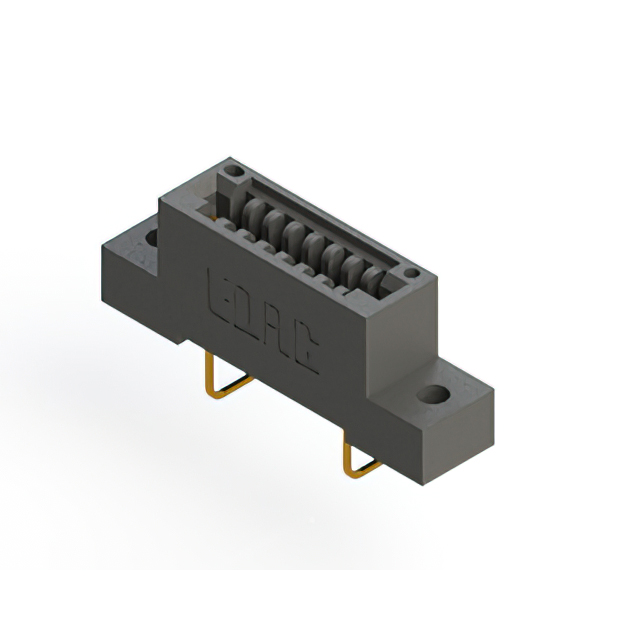

895-008-558-102 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 8POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 895-008-558-102
- Description：CONN EDGE SINGLE FML 8POS 0.100
- Series：895
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：8
- Number of Positions：8
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 895-008-558-102
Edgeboard Connectors Overview
The EDAC Inc. 895-008-558-102 is a card edge connector receptacle featuring 8 positions in a single row configuration. It utilizes a 0.100 inch (2.54 mm) contact pitch with a 0.200 inch (5.08 mm) row spacing. The component accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Designed for panel mount installation, it employs a high-profile insulator body and gold-plated contacts.
Edgeboard Connectors Feature Summary
- Single-row female receptacle design for non-specified card edge applications
- High-profile insulator body construction for secure board retention
- Gold-plated contact surfaces to ensure reliable electrical conductivity
Edgeboard Connectors Applications
- Panel-mounted electronic interconnect systems
- Industrial control module connections
- Medical device internal circuit board interfaces
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's official 895 Series Ordering Guide to confirm exact pin count, plating thickness, and mounting style. Ensure the target application requires a single-row configuration with a 0.062-inch board thickness compatibility before procurement.
Edgeboard Connectors Selection Notes
Select this component when a single-row interface is required for boards with a standard 0.062-inch thickness. The 0.100-inch pitch suits general-purpose digital signal routing. Confirm that the panel mount orientation aligns with the mechanical layout constraints of the enclosure design.
Edgeboard Connectors Part Context
This part belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and row configurations. The 895-008 variant specifically addresses low-pin-count requirements within the broader family of dual and single-edge interconnect solutions.
Edgeboard Connectors Replacement Considerations
Cross-reference the 895-008-558-xxx series variants for alternative plating or packaging options. Verify mechanical footprint compatibility if substituting with other manufacturers' single-row 0.100-inch pitch connectors.
