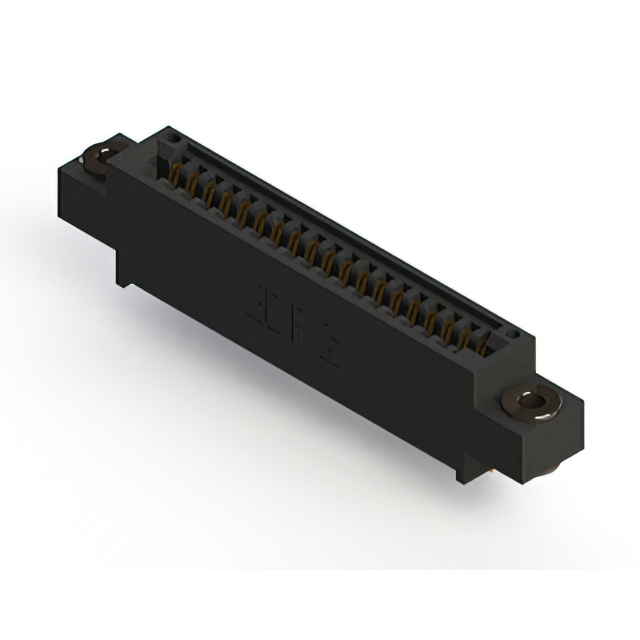

895-019-525-603 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 19POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 895-019-525-603
- Description：CONN EDGE SINGLE FML 19POS 0.100
- Series：895
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：19
- Number of Positions：19
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 895-019-525-603
Edgeboard Connectors Overview
The EDAC Inc. 895-019-525-603 is a standard card edge connector receptacle featuring 19 positions with a 0.100-inch (2.54mm) pitch. Designed for vertical panel mount installation, it utilizes gold-plated copper alloy contacts and a black polyphenylene sulfide (PPS) insulator. The component supports single-sided card edges and operates within a temperature range of -40°C to +125°C.
Edgeboard Connectors Feature Summary
- Vertical panel mount configuration for secure board integration
- Gold-plated copper alloy contacts ensure reliable signal transmission
- Polyphenylene sulfide housing provides high-temperature stability
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Medical equipment needing reliable signal pathways
- Agricultural technology applications in harsh environments
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against official EDAC documentation to confirm contact termination and mounting style variations. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference datasheet revisions to confirm material composition and compliance status. Confirm availability through authorized distributors as supply may be restricted.
Edgeboard Connectors Selection Notes
Select this component when a single-row, 19-position connection is required for vertical panel mounting. Verify that the target circuit board thickness falls within the specified operational limits. Consider the gold plating for corrosion resistance in demanding environments. Ensure the mating card edge design aligns with the connector's single-sided requirements.
Edgeboard Connectors Part Context
This part belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and mounting options. It is designed for general-purpose interconnect applications requiring durable connections in industrial and commercial settings.
Edgeboard Connectors Replacement Considerations
Consult official EDAC substitution guides for verified alternatives. Generic equivalents may not match dimensional or electrical specifications. Verify pin count and pitch compatibility before considering substitutes.
