895-026-525-108

Edgeboard Connectors Overview

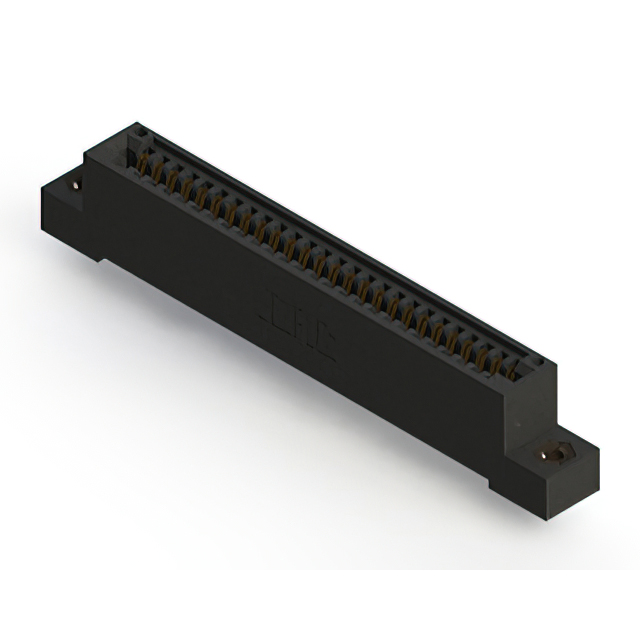

The EDAC Inc. 895-026-525-108 is a single-row card edge connector designed for through-hole mounting. It features 26 positions with a 0.100 inch (2.54mm) pitch and accepts single-sided cards. The contacts are made of copper alloy with a gold finish, ensuring reliable signal transmission. The housing is black PPS material, rated for operation between -55°C and +125°C. This component supports vertical panel or board mounting configurations.

Edgeboard Connectors Feature Summary

• Single-sided female contact configuration for standard card edge applications
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Thermoplastic insulator construction providing mechanical stability and thermal endurance

Edgeboard Connectors Applications

• Industrial control system interface connections
• Consumer electronics module interconnects
• Telecommunications equipment backplane links

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm the exact contact length and flange style required for your assembly. Confirm that the target PCB thickness aligns with the connector's acceptance range. Check RoHS compliance status if environmental regulations apply to your manufacturing process. Ensure the single-sided card specification matches your design requirements before procurement.

Edgeboard Connectors Selection Notes

Select this model when a single-row connection is sufficient for the circuit density. The 0.100 inch pitch offers a balance between pin count and spacing. Consider the through-hole termination method for robust mechanical anchoring. Evaluate the operating temperature range against your environment to ensure material integrity under stress conditions.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series, which specializes in high-reliability card edge connectors. The series provides various row counts and pitch options for diverse electronic integration needs. EDAC designs these components to meet stringent industrial standards for durability and electrical performance in demanding environments.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include variations such as 895-026-525-104 or 895-026-525-101, differing primarily in contact plating thickness or flange specifications. Always verify dimensional compatibility and electrical ratings before swapping parts from different manufacturers.
