895-030-524-207

Edgeboard Connectors Overview

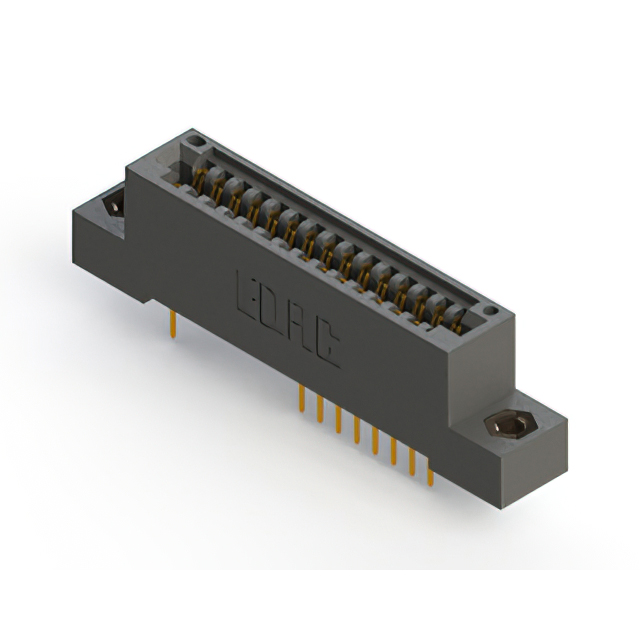

The EDAC Inc. part number 895-030-524-207 is a standard card edge connector receptacle designed for vertical panel mounting applications. It features a dual female configuration with 30 positions arranged in two rows, utilizing a 0.100-inch (2.54mm) pitch spacing. The connector supports printed circuit boards with a thickness of 1.57mm and employs wire hole termination methods for secure electrical connections. Constructed with copper alloy contacts featuring gold plating, the unit ensures reliable signal transmission within an operating temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design accommodates double-sided card edge PCBs
• Vertical panel mount orientation facilitates structured chassis integration
• Wire hole termination style enables flexible wiring harness connectivity
• Polyphenylene sulfide (PPS) housing provides high thermal stability

Edgeboard Connectors Applications

• Industrial control system interface modules
• Telecommunications equipment backplane connections
• Test and measurement instrument input/output panels
• Automotive electronic control unit interconnects

Edgeboard Connectors Procurement Notes

Verify that the specific suffix 207 corresponds to the wire hole termination style and black color coding as documented in official EDAC datasheets. Confirm compatibility with 1.57mm board thickness requirements. Ensure procurement channels provide original manufacturer documentation to validate RoHS compliance and material specifications against current industry standards.

Edgeboard Connectors Selection Notes

Select this component when vertical panel mounting is required for dual-sided card edge interfaces. The wire hole termination option suits applications needing direct wire attachment rather than surface mount or through-hole soldering. Verify that the 30-position count and 2.54mm pitch align with the target PCB layout constraints and mating card dimensions.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and termination styles to support diverse electronic assembly needs. The 895 series is characterized by robust construction materials and standardized dimensional profiles suitable for general-purpose industrial and commercial electronic interconnect solutions.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 895 series variants such as 895-030-524-508 for potential supply chain alternatives. Ensure substitute parts maintain identical dual-edge female configuration, 30-position count, 2.54mm pitch, and 1.57mm board thickness compatibility.
