895-030-524-612

Edgeboard Connectors Overview

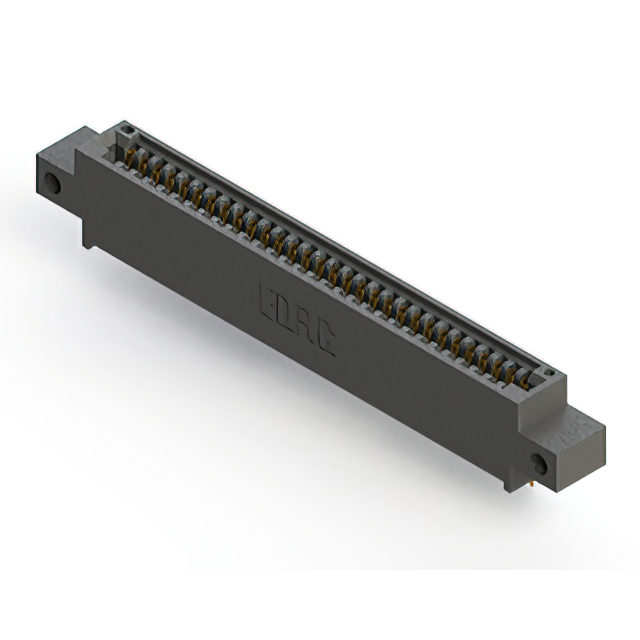

The EDAC Inc. 895-030-524-612 is a standard card edge connector designed for single-row female applications. It features a 0.100-inch (2.54mm) pitch and accommodates 30 positions. The connector utilizes gold-plated copper alloy contacts with a polyphenylene sulfide (PPS) insulator. It supports wire hole termination and panel mount vertical installation. The unit operates within a temperature range of -40°C to +125°C and maintains an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Single-row female configuration with 30 contact positions
• Gold-plated copper alloy contacts for reliable signal transmission
• Polyphenylene sulfide (PPS) insulator material for thermal stability
• Wire hole termination method for secure electrical connection

Edgeboard Connectors Applications

• Standard card edge interconnection systems
• Panel-mounted electronic assemblies requiring vertical orientation
• Industrial control modules utilizing .100 inch pitch interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 895 Series Ordering Guide to ensure correct termination style and mounting configuration. Confirm that the required board thickness aligns with the connector's design specifications before procurement. Cross-reference the part number with current distributor availability as supply status may vary.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 30-position female connector is required for vertical panel mounting. Ensure the application environment falls within the specified -40°C to +125°C operating range. Verify compatibility with the target PCB card thickness and confirm that wire hole termination suits the assembly process constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors. The series offers various configurations including single and dual rows with different position counts. The 895 series is characterized by its robust construction and suitability for general-purpose electronic interconnections in industrial and commercial applications.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 895 Series Ordering Guide for direct substitutes with identical pin counts and termination styles. Alternative parts must match the 0.100 inch pitch and panel mount vertical orientation requirements to ensure mechanical and electrical compatibility.
