Edgeboard Connectors Overview

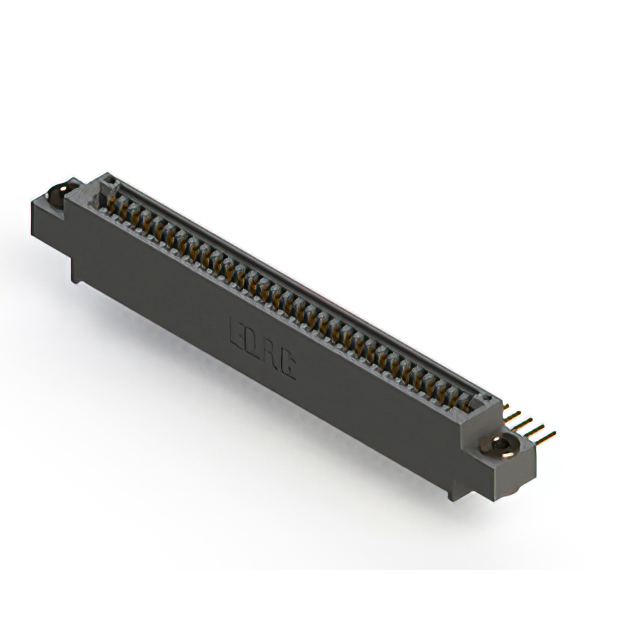

The EDAC Inc. 895-031-559-603 is a standard single-row card edge connector receptacle designed for vertical panel mount applications. It features 31 positions with a 2.54 mm (0.100 inch) pitch, accommodating a board thickness of 1.57 mm. The contacts are constructed from copper alloy and gold plated to ensure reliable signal transmission. Wire wrap termination provides secure electrical connections. The housing utilizes polyphenylene sulfide (PPS) for durability, supporting an operating temperature range from -40°C to +125°C with a 3 A current rating.

Edgeboard Connectors Feature Summary

• Vertical panel mount configuration for space-constrained installations
• Gold-plated copper alloy contacts for corrosion resistance
• Wire wrap termination method for robust circuit attachment
• Polyphenylene sulfide housing material for thermal stability

Edgeboard Connectors Applications

• Industrial control system interface modules
• Telecommunications equipment backplanes
• Automotive electronic control units
• Test and measurement instrumentation cards

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against manufacturer documentation to confirm exact termination style and plating specifications. Ensure compatibility with target PCB edge thickness and mounting hole patterns. Confirm RoHS compliance status through official datasheets prior to integration. Cross-reference lead times and availability constraints directly with authorized distributors or the manufacturer.

Edgeboard Connectors Selection Notes

Select this component when a vertical orientation and wire wrap termination are required for a 31-position interface. The 2.54 mm pitch aligns with standard board layouts. Verify that the PPS housing meets environmental requirements. Consider alternative series if solder pin termination or right-angle mounting is preferred for the specific assembly workflow.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of high-reliability card edge connectors. The series offers various position counts and termination options. The 895-031 variant specifically addresses interfaces requiring thirty-one connection points. It serves as a standardized solution for modular electronics where mechanical stability and electrical integrity are critical for long-term operation.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
