895-032-521-802

Edgeboard Connectors Overview

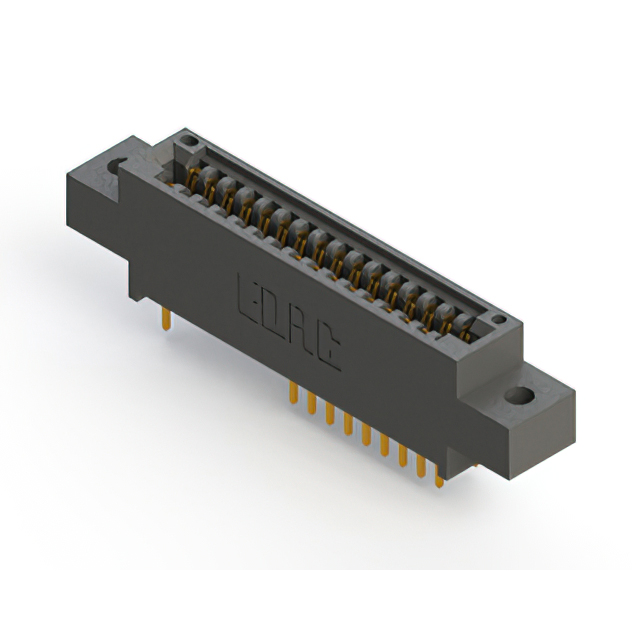

The EDAC Inc. 895-032-521-802 is a standard card edge connector receptacle designed for vertical panel mount applications. It features a dual-edge configuration with 32 positions and a 0.100-inch (2.54mm) pitch. The contacts are gold-plated copper alloy, supporting a current rating of 3A. The housing is constructed from black polyphenylene sulfide (PPS), providing an insulation resistance of 5 GOhms. It operates within a temperature range of -40°C to +125°C and accommodates board thicknesses of 1.57mm.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure card insertion
• Vertical panel mount orientation for structural stability
• Gold-plated copper alloy contacts ensure reliable conductivity
• Polyphenylene sulfide housing offers high thermal resistance

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment needing reliable signal transmission
• Automotive electronics in harsh environments
• Telecommunications infrastructure hardware

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with target PCB thickness and mounting hole dimensions before procurement. Confirm RoHS compliance status through the manufacturer's latest environmental reports.

Edgeboard Connectors Selection Notes

Select this component when a vertical, dual-edge connection is required for 32-position interfaces. Consider the 2.54mm pitch and PPS material properties for thermal management needs. Evaluate the 3A current rating against circuit requirements to ensure adequate performance margins.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series, which specializes in standard card edge connectors. The series provides various position counts and mounting styles. The 895-032 variant specifically addresses applications needing a moderate number of connections with high durability.

Edgeboard Connectors Replacement Considerations

Consult EDAC official substitution guides for direct replacements. Verify mechanical footprint and electrical characteristics match before considering alternative manufacturers.
