895-038-556-204

Edgeboard Connectors Overview

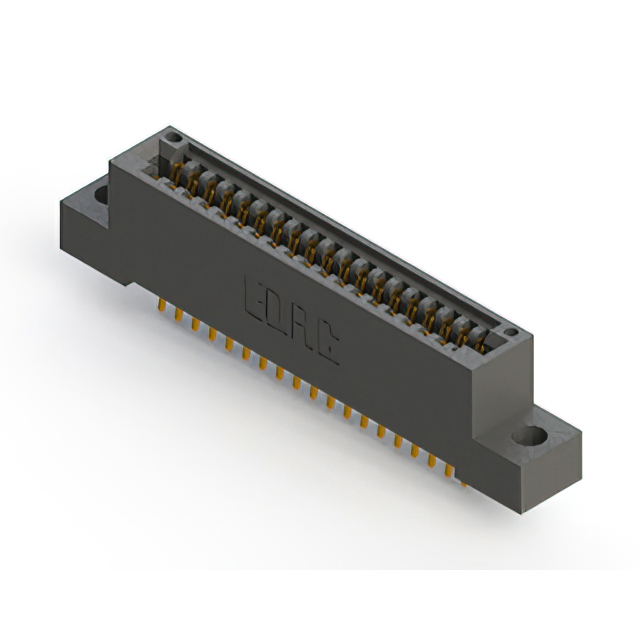

The EDAC Inc. 895-038-556-204 is a standard card edge connector receptacle featuring 38 positions with a 0.100-inch (2.54 mm) pitch. Designed for dual-edge board insertion, it utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. The component supports wire wrap termination and is constructed with a black polyphenylene sulfide (PPS) housing. It is configured for vertical panel mount installation, providing a secure interface for electronic assemblies requiring robust mechanical stability.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board retention
• Gold-plated copper alloy contacts for enhanced conductivity
• Polyphenylene sulfide housing material for thermal resistance
• Wire wrap termination style for flexible circuit integration

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Automotive electronics modules
• Medical device circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count, plating thickness, and termination style. Ensure compatibility with the target PCB edge thickness and mounting hole dimensions. Cross-reference the RoHS compliance status with the latest environmental declaration provided by EDAC Inc. before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge female interface with a 0.100-inch pitch is required for panel-mounted applications. The wire wrap termination option suits designs utilizing wire wrap tools rather than surface mount or through-hole soldering processes. Verify that the operating temperature range aligns with the environmental conditions of the intended deployment scenario.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and termination options to accommodate different board densities. The 895 series is widely utilized in general-purpose electronic systems where reliable vertical mating connections are necessary for modular hardware architectures.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for compatible alternatives. Verify dimensional tolerances and electrical ratings match the original design requirements before integrating substitute part numbers.
