895-049-525-603

Edgeboard Connectors Overview

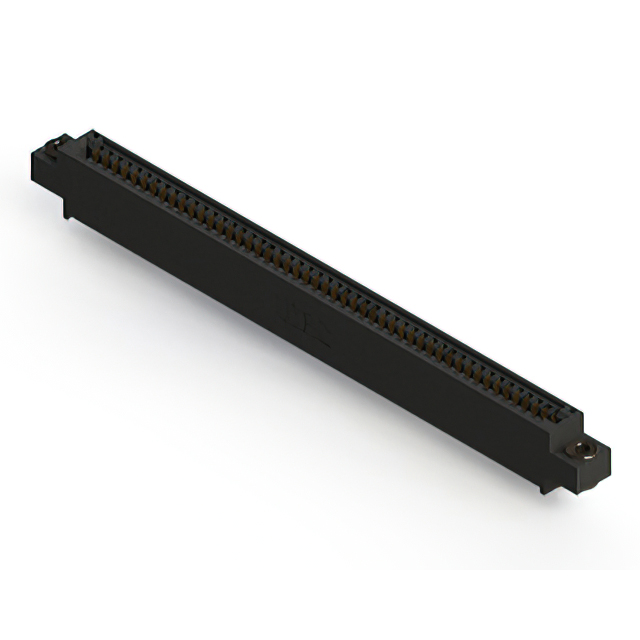

The EDAC Inc. 895-049-525-603 is a standard card edge connector from the 895 series, designed for single-edge board applications. It features 49 positions with a 0.100-inch (2.54mm) pitch and utilizes female contact types. The component is constructed with a black Polyphenylene Sulfide (PPS) housing and copper alloy contacts finished with gold plating. It supports panel mount installation in a vertical orientation with solder pin termination. The connector accommodates non-specified single-edge cards within a thickness range of 0.054 to 0.070 inches (1.37 to 1.78 mm). It operates reliably between -40°C and +125°C, carries RoHS3 compliance, and has an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Single-edge female receptacle configuration with 49 positions
• Vertical panel mount design with solder pin termination
• Gold-plated copper alloy contacts housed in black PPS material

Edgeboard Connectors Applications

• Industrial control systems requiring vertical card insertion
• Test and measurement equipment interfaces
• Communication hardware backplanes

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against the manufacturer's official ordering guide to ensure correct flange and mounting hole specifications. Confirm that the target application requires a single-edge connector rather than a dual-edge variant. Check current supply chain status as availability may vary by region. Ensure the PCB design matches the specified 0.100-inch pitch and board thickness tolerance before procurement.

Edgeboard Connectors Selection Notes

Select this model when a vertical, single-row interface is required for non-standard single-edge circuit boards. The 49-position count suits moderate-density signal routing needs. The PPS housing provides thermal stability for high-temperature environments up to 125°C. Verify that the panel mount style aligns with the mechanical enclosure design constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and mounting styles. The 895-049-525-603 specifically addresses single-edge applications, distinguishing it from dual-edge counterparts like the 895-049-559-503 which serves different board configurations.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include 895-049-521-101 for vertical single-edge use or 895-049-525-603 variants with different flange options. Cross-series replacements require verifying pitch and row alignment.
