Edgeboard Connectors Overview

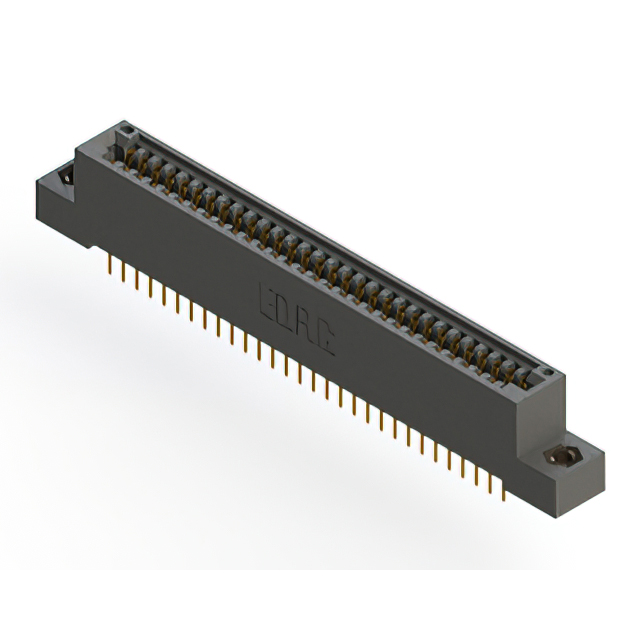

The EDAC Inc. 895-060-524-207 is a dual-edge female card edge connector designed for through-hole mounting. It features 60 positions with a 0.100 inch (2.54mm) pitch across two rows. The contacts are made of copper alloy with gold plating, housed in black polyphenylene sulfide (PPS). It supports board thicknesses from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 125°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for non-specified card types
• Gold-plated copper alloy contacts for reliable conductivity
• Polyphenylene sulfide insulation material for thermal stability

Edgeboard Connectors Applications

• High-density electronic interconnect systems
• Industrial control panel assemblies
• Telecommunications equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current 895 Series Ordering Guide to ensure compatibility with required flange characteristics and termination styles. Confirm that the selected variant matches the intended PCB thickness and mounting orientation requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count dual-edge interface is required for vertical panel or board-to-board connections. Ensure the design accommodates the specified 0.100-inch pitch and verify that the target application environment remains within the -40°C to 125°C operating temperature range defined by the PPS housing material.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and configurations to support diverse connectivity needs in compact electronic designs, utilizing standardized dimensions for broad compatibility with industry-standard edge cards.

Edgeboard Connectors Replacement Considerations

Consult the official 895 Series Ordering Guide for direct substitutes with differing pin counts or flange options. Generic equivalents may not match the precise 0.100-inch pitch or gold plating specifications required for signal integrity.
