896-012-559-104

Edgeboard Connectors Overview

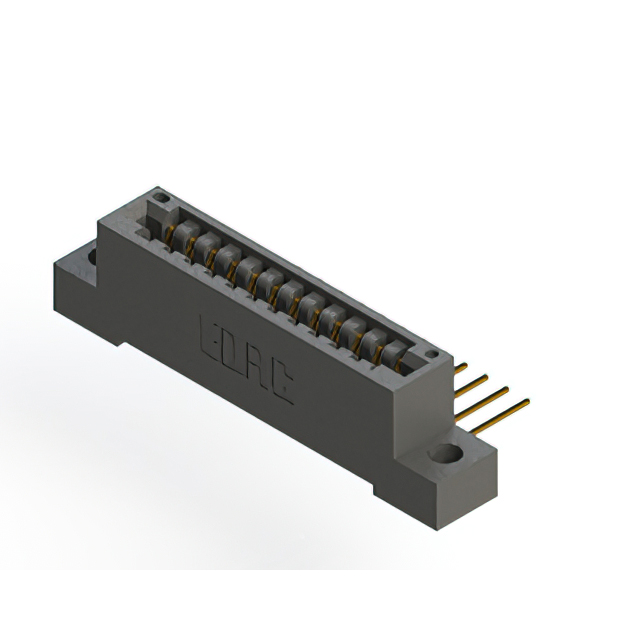

The EDAC Inc. 896-012-559-104 is a standard single-row card edge connector receptacle designed for panel mount applications. It features 12 positions with a 3.18 mm (0.125 inch) pitch, accommodating a board thickness of 1.57 mm. The contacts are gold-plated copper alloy, rated for 3 A current, and utilize wire wrap termination. Constructed with a black polyphenylene sulfide (PPS) housing, it operates within a temperature range of -40°C to +125°C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Single row female configuration with gold-plated copper alloy contacts
• Wire wrap termination style for secure circuit connection
• Polyphenylene sulfide (PPS) insulator housing for thermal stability

Edgeboard Connectors Applications

• Panel-mounted electronic interconnects
• High-temperature circuit board connections
• Industrial control system interfaces

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to ensure compatibility with your design requirements. Confirm that the wire wrap termination and panel mount style align with your assembly process. Check for any recent product change notifications or environmental compliance updates directly from the manufacturer's official channels before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 12-position interface is required with a 3.18 mm pitch. Ensure the application supports wire wrap termination rather than solder pin methods. Verify that the operating environment stays within the specified -40°C to +125°C range and that the panel mount orientation matches the mechanical layout constraints of the target equipment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 896 series of high-temperature card edge connectors. The series is characterized by robust construction suitable for demanding environments. The specific model provides a reliable interface solution for vertical panel mounting, distinguishing itself through its use of PPS material and gold contact plating for durability and conductivity.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers. Generic cross-references may not match the specific wire wrap termination or PPS housing characteristics required for proper function.
