896-024-559-612

Edgeboard Connectors Overview

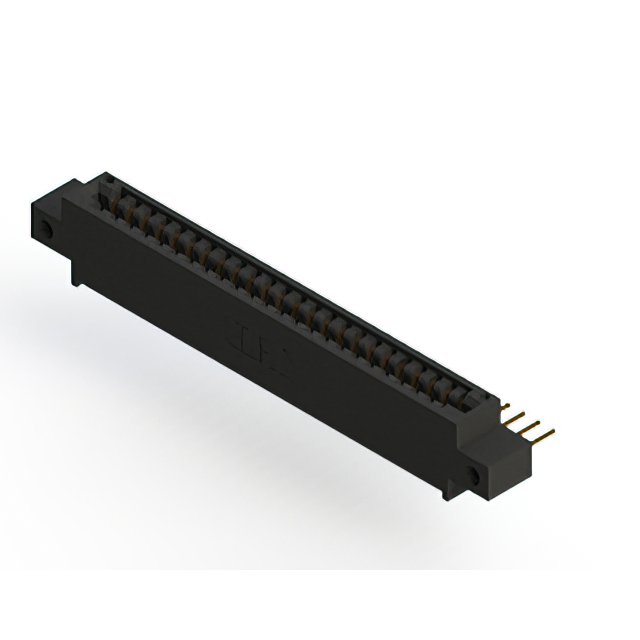

The EDAC Inc. 896-024-559-612 is a high-temperature standard card edge connector receptacle designed for panel mount applications. It features a right-angle configuration with 24 positions and a contact spacing of 3.175 mm (0.125 inch). The unit accommodates printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch) and utilizes a single row arrangement. The insulator body is constructed from black polyphenylene sulfide, providing durability in demanding environments.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for rigorous operational conditions
• Right-angle panel mount design with unthreaded side mount openings
• Gold-plated contacts ensuring reliable signal transmission

Edgeboard Connectors Applications

• Medical interconnect solutions requiring durable connections
• Agricultural technology equipment operating in harsh environments
• Industrial control systems needing high-temperature stability

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm terminal type and plating specifications. Confirm that the required board thickness matches the connector's acceptance range. Ensure the panel cutout dimensions align with the specified side mount opening diameter. Check regional availability as distribution may be limited in certain areas.

Edgeboard Connectors Selection Notes

Select this component when a right-angle, panel-mount card edge connector is required for high-temperature applications. The 24-position count and 3.175 mm pitch must match the target PCB layout. Verify compatibility with the intended board thickness of 1.57 mm. Consider the black PPS insulation material for environmental resistance.

Edgeboard Connectors Part Context

This part belongs to the EDAC 896 series of high-temperature card edge connectors. The series offers various position counts and mounting styles tailored for industrial and medical sectors. The 896 designation indicates a standard profile receptacle with specific thermal and mechanical ratings defined by the manufacturer.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 896 series variants for alternative position counts or mounting configurations. Verify that any substitute maintains the same 3.175 mm pitch and 1.57 mm board thickness tolerance. Ensure the replacement part shares the right-angle panel mount form factor.
