896-034-500-803

Edgeboard Connectors Overview

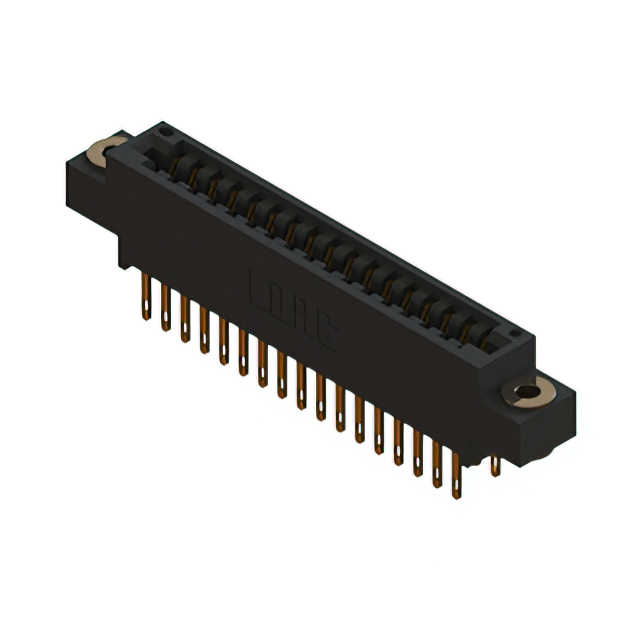

The EDAC Inc. model 896-034-500-803 is a standard card edge connector receptacle featuring 34 positions with a 3.175 mm pitch. Designed for dual-edge card insertion, it utilizes gold-plated copper alloy contacts and a black polyphenylene sulfide (PPS) housing. The component supports wire wrap termination and panel mount installation in a vertical orientation. It accommodates board thicknesses of 1.57 mm and operates within a temperature range of -40 C to +125 C, rated for 3 A current.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure card insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Polyphenylene sulfide housing provides high-temperature resistance
• Vertical panel mount design facilitates structured integration

Edgeboard Connectors Applications

• High-temperature industrial control systems
• Medical interconnect solutions
• Agricultural technology equipment
• Harsh environment electronic assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, plating thickness, and termination style. Ensure compatibility with the target PCB edge card dimensions and panel mounting requirements before procurement. Confirm RoHS compliance status through the manufacturer's latest datasheet or certification documents.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connection with a 3.175 mm pitch is required. The vertical panel mount style suits applications needing direct board access. Verify that the operating temperature range up to 125 C meets environmental demands. Ensure the wire wrap termination method aligns with the assembly process capabilities.

Edgeboard Connectors Part Context

This part belongs to the EDAC 896 series of high-temperature card edge connectors. The series is engineered for durability in demanding environments, including medical and agricultural sectors. The 896 designation indicates specific dimensional and material characteristics distinct from other EDAC connector families.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternatives. Cross-reference pitch, row count, and termination type to ensure mechanical and electrical compatibility.
