9000046-XLPDNB

$5.45

Description：ANTENNA ASSY, WHIP ISM8
Series：-
Mfr：KYOCERA AVX
Package：Bag

SKU:9f1c409b0b41 Category: RF Antennas Brand: KYOCERA AVX

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：ANTENNA ASSY, WHIP ISM8
Series：-
Mfr：KYOCERA AVX
Package：Bag
RF Family/Standard：Cellular, Genral ISM
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：891.5MHz
Frequency Range：868MHz ~ 915MHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2.3
Return Loss：-
Gain：0.9dBi
Features：-
Termination：SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：3.976" (101.00mm)
Applications：Cellular, LPWA, LoRa, IoT, ISM, Sigfox
Power - Max：-

Download product information

9000046-XLPDNB

Overview

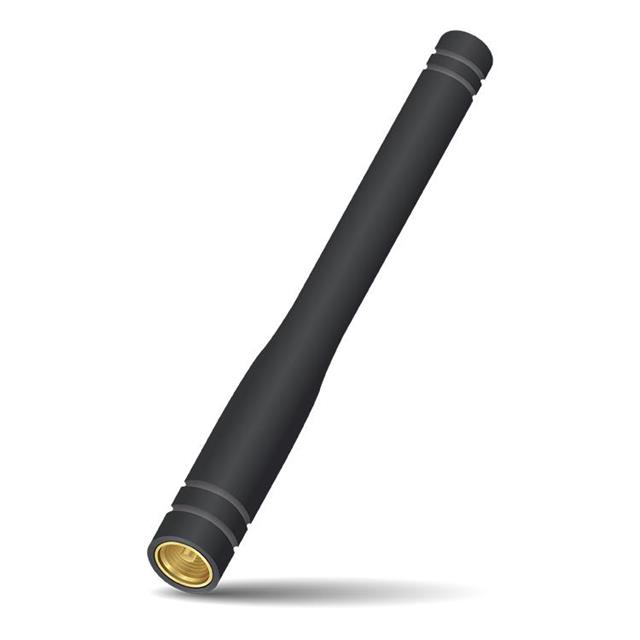

The KYOCERA AVX 9000046-XLPDNB is an external whip antenna assembly designed for ISM band applications. It operates within a frequency range of 868MHz to 915MHz, with a center frequency of 891.5MHz. The unit features a straight whip design and provides a gain of 0.9dBi. It utilizes an SMA connector interface and exhibits a Voltage Standing Wave Ratio (VSWR) of 2.3. The physical construction includes black coloring.

Feature Summary

External whip antenna configuration for ISM bands
SMA connector interface
Straight whip design

Applications

ISM band communication systems
Wireless data transmission devices
RF equipment requiring 868-915MHz coverage

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm technical specifications. Ensure compatibility with existing SMA interfaces and ISM band requirements before procurement. Cross-reference official KYOCERA AVX resources for accurate lead times and availability status.

Selection Notes

Select this component when an external whip antenna is required for ISM band operations between 868MHz and 915MHz. Consider the 0.9dBi gain and SMA connector type for system integration. Evaluate VSWR performance relative to application needs.

Part Context

This part belongs to the KYOCERA AVX RF antenna portfolio, specifically categorized as an external whip antenna assembly. It is engineered for industrial, scientific, and medical (ISM) frequency bands, providing a standardized solution for wireless connectivity in compact form factors.
