9000154

$1.37

Description：ANTENNA PCB, GSM5 D0230
Series：-
Mfr：KYOCERA AVX
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:8e83a25314de Category: RF Antennas Brand: KYOCERA AVX

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：ANTENNA PCB, GSM5 D0230
Series：-
Mfr：KYOCERA AVX
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：802.15.4, Cellular
Frequency Group：UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：892MHz, 1.94GHz
Frequency Range：824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type：Chip
Number of Bands：2
VSWR：2.5, 2.7
Return Loss：-
Gain：0dBi, 0.7dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.126" (3.20mm)
Applications：LTE, LoRa, LPWAN, Sigfox
Power - Max：2 W

Download product information

9000154

Overview

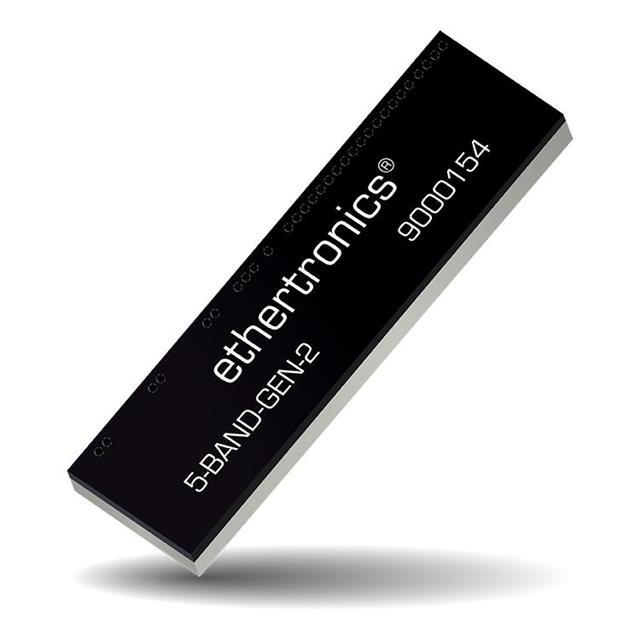

The KYOCERA AVX 9000154 is an active surface-mount PCB antenna designed for cellular and LPWA applications. It supports the 802.15.4 standard and operates within UHF frequency groups ranging from 300MHz to 2GHz. The component covers specific bands of 824MHz to 960MHz and 1.71GHz to 2.17GHz, suitable for GSM5 D0230 configurations. Packaged in tape and reel format, it utilizes embedded mounting technology.

Feature Summary

Supports multiple cellular standards including GSM, LTE, 2G, 3G, 4G, and 5G
Utilizes patented IMD technology for high performance
Designed for surface mount embedding on printed circuit boards

Applications

Cellular IoT devices
LPWA modules
GSM/LTE handsets

Procurement Notes

Verify the specific datasheet version and ordering suffixes to ensure compatibility with your design requirements. Confirm that the tape and reel packaging matches your automated assembly equipment specifications. Cross-reference the frequency range against your target network bands to guarantee operational validity.

Selection Notes

Select this component when a compact, embedded solution for multi-band cellular connectivity is required. Ensure the host PCB layout accommodates the specific ground plane requirements typical for these antennas. Consider the operating temperature range and mechanical stability for the intended deployment environment.

Part Context

This part belongs to the KYOCERA AVX cellular antenna family, which integrates advanced impedance matching designs. It is distinct from general-purpose RF components by focusing specifically on mobile communication protocols. The product line emphasizes miniaturization while maintaining signal integrity for modern wireless standards.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing inventory before initiating any substitution process.
