9002133-02

Overview

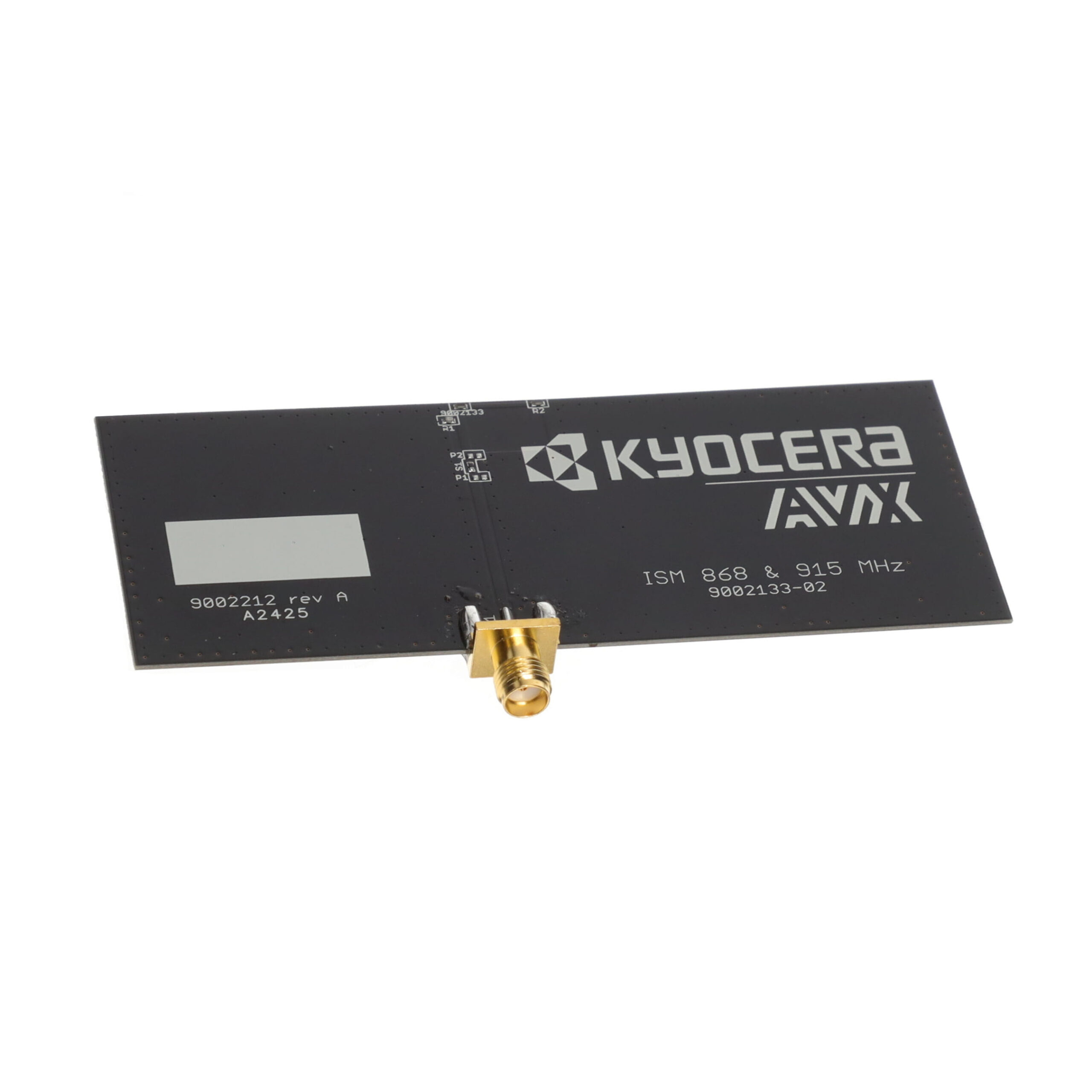

The KYOCERA AVX 9002133-02 is an evaluation board designed for the 9002133 ISM chip antenna. It measures 100 mm x 40 mm x 0.8 mm and supports a frequency range of 863 MHz to 928 MHz, with center bands at 866.5 MHz and 915 MHz. The board operates within a maximum temperature of +125 C. It facilitates testing for UHF applications in the 300 MHz to 1 GHz spectrum.

Feature Summary

• Designed specifically for evaluating the performance of ultra-small ISM chip antennas
• Supports operation in general ISM RF standards and UHF frequency groups

Applications

• ISM Applications
• IoT Development
• LoRa Testing
• M2M Evaluation

Procurement Notes

Verify that the procurement source provides official documentation confirming the part number 9002133-02 as an evaluation board for the 9002133 antenna. Ensure specifications match the required dimensions and frequency ranges. Confirm RoHS compliance status through manufacturer data sheets before acquisition.

Selection Notes

Select this component when development requires a dedicated platform to test the 9002133 chip antenna. It is suitable for engineers validating antenna efficiency in compact designs. Consider the physical dimensions and operating temperature limits during integration planning.

Part Context

This evaluation board belongs to the KYOCERA AVX RF Antennas family. It serves as a development tool for the 9002133 silicon core component. The product is categorized under General ISM standards and supports active part status for ongoing design projects.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific evaluation board model.
