Product Detailed Parameters
- Description：91121743
- Series：-
- Mfr：Huber+Suhner, Inc.
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：460MHz
- Frequency Range：450MHz ~ 470MHz
- Antenna Type：Dome
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：2dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：IP30
- Grade：-
- Qualification：-
- Mounting Type：Panel Mount
- Height (Max)：3.031" (77.00mm)
- Applications：General Purpose
- Power - Max：-
Download product information
Overview

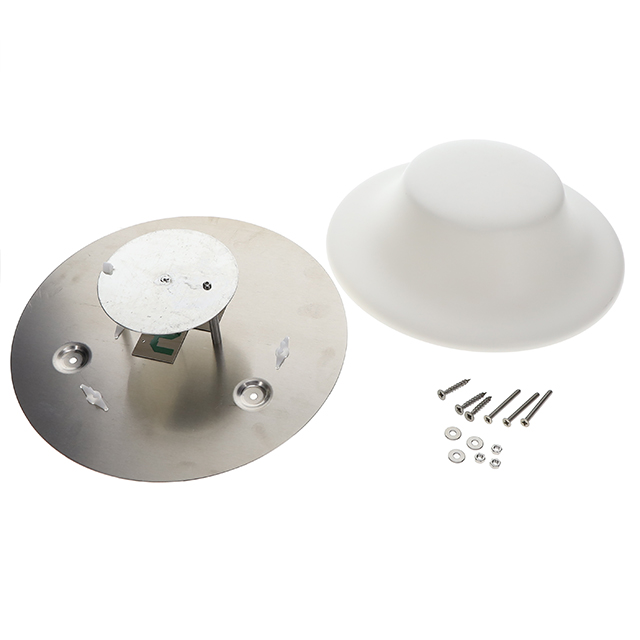

The Huber+Suhner 91121743 is a general-purpose dome RF antenna designed for UHF frequency applications. It operates within a frequency range of 450MHz to 470MHz, centered at 460MHz. The component provides a gain of 2dBi and maintains a Voltage Standing Wave Ratio (VSWR) of 2. It features an N-type female connector for termination and is engineered for panel mounting installation. The antenna has a maximum height of 3.031 inches (77.00mm) and carries an IP30 ingress protection rating. It complies with RoHS3 standards.
Feature Summary
- Dome-shaped passive antenna design optimized for UHF band operations
- N-type female connector interface facilitating standard panel integration
- IP30 rated enclosure suitable for controlled indoor environments
Applications
- General purpose radio frequency communication systems
- UHF band data transmission infrastructure
- Industrial monitoring and control networks
Procurement Notes
Verify the specific orderable part number against official Huber+Suhner documentation to ensure accuracy. Confirm that the N-type female connector orientation matches the intended panel cutout requirements. Check for any recent updates to the datasheet regarding environmental certifications or mechanical tolerances before finalizing procurement specifications.
Selection Notes
Select this model when a compact dome antenna is required for the 450-470MHz spectrum. Ensure the application environment supports the IP30 protection level. Verify that the 2dBi gain specification meets the link budget requirements for the specific deployment scenario. Confirm compatibility with existing N-type female mating connectors in the system architecture.
Part Context
This component belongs to the Huber+Suhner RF antenna portfolio, which serves industrial, communication, and transportation markets. The manufacturer specializes in robust connectivity solutions for demanding conditions. This specific part represents a passive antenna solution designed for reliable signal transmission in UHF applications without active electronic components.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult official manufacturer channels for cross-reference information if alternative sourcing is required.
