9211D

Overview

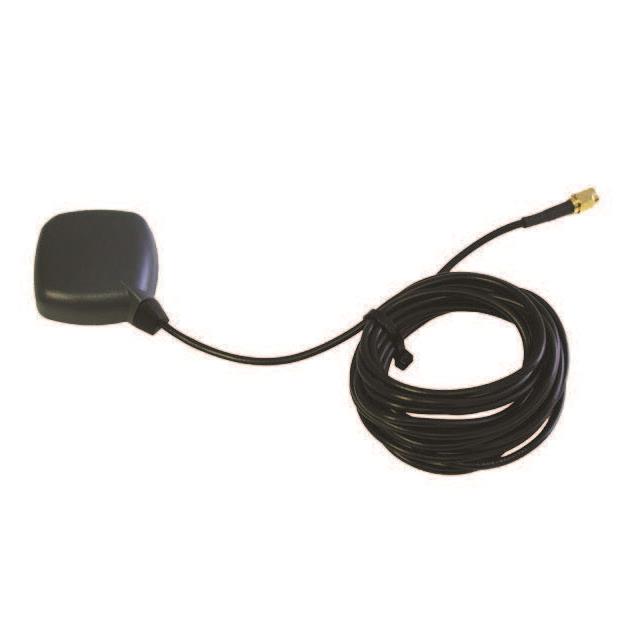

The Amphenol PCTEL 9211D is a permanent GNSS and GPS module antenna designed for navigation applications. It operates within the UHF frequency group, specifically centered at 1.621GHz. The component utilizes an SMA male connector for termination and features magnetic mounting for installation flexibility. It includes a 2-meter cable length and provides IP67 ingress protection to ensure environmental durability.

Feature Summary

• Integrated passive filtering for Iridium band support
• Magnetic mounting configuration for rapid deployment
• IP67 rated enclosure for weather resistance

Applications

• Iridium satellite communication systems
• Global Positioning System (GPS) tracking
• General navigation equipment
• Marine vessel telemetry

Procurement Notes

Verify the specific cable length variant required, as suffixes such as 2M or 15FT denote different physical configurations. Confirm that the SMA male termination matches the receiving interface. Ensure the magnetic base is suitable for the target ferromagnetic surface material and curvature.

Selection Notes

Select this model when a dedicated GNSS solution with integrated Iridium filtering is necessary. The magnetic mount offers a non-permanent installation alternative compared to screw-mount variants. Consider the fixed 2-meter cable length during system integration planning to avoid signal loss or excess slack.

Part Context

This component belongs to the Medallion II series of antennas from Amphenol PCTEL. The series focuses on providing robust RF solutions for mobile and stationary navigation platforms. The 9211D represents a specialized module optimized for multi-constellation reception with specific band filtering capabilities.

Replacement Considerations

The 9211D-2M-S2 is a confirmed substitute part number representing the same functional specifications with explicit cable length designation.
