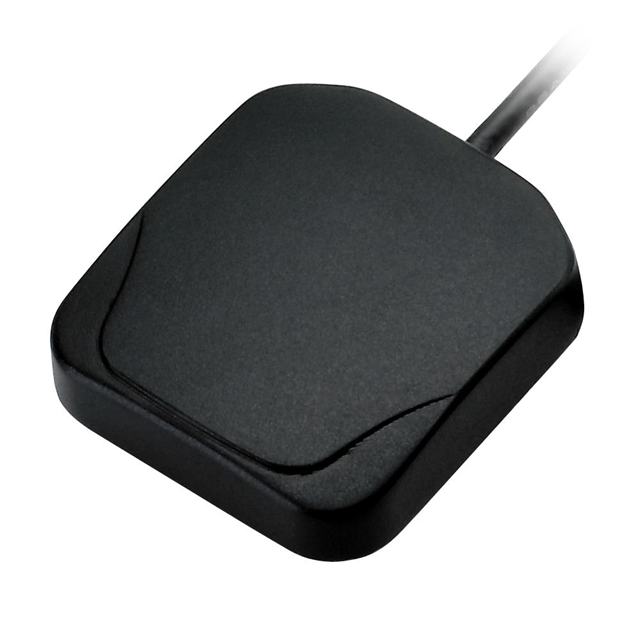

AA.166.A.301111

$17.43

Description：AA.166.A.301111 ULYSSES MINIATUR
Series：-
Mfr：Taoglas Limited
Package：Bag

SKU:fc27e8e6461d Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：AA.166.A.301111 ULYSSES MINIATUR
Series：-
Mfr：Taoglas Limited
Package：Bag
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.559GHz, 1.561GHz, 1.575GHz, 1.592GHz, 1.602GHz
Frequency Range：1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz
Antenna Type：Module
Number of Bands：5
VSWR：5
Return Loss：-3dB
Gain：1.92dBi, 2.34dBi, 0.34dBi, 2.1dBi, 1.81dBi
Features：Cable - 3m, LNA, Filter
Termination：SMA Male
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：0.394" (10.00mm)
Applications：Beidou, Galileo, GLONASS, GPS
Power - Max：-

Download product information

AA.166.A.301111

Overview

The Taoglas AA.166.A.301111 is a triple-band GNSS antenna module supporting GPS, GLONASS, Galileo, and BeiDou constellations. It operates within the L1 band frequency range of 1575 MHz to 1602 MHz. The device features an integrated high-gain wide-band patch antenna on an integral ground plane for reliable performance. It includes a built-in Low Noise Amplifier (LNA) and utilizes a magnetic mount installation type with an SMA male connector.

Feature Summary

Triple GNSS system support for combined signal reception across multiple global navigation satellite systems
IP67 waterproof rating and UV resistant enclosure for outdoor durability
Integrated low noise amplifier for enhanced signal sensitivity
Magnetic mount design for flexible installation

Applications

Vehicle tracking and telematics
Maritime navigation equipment
Agricultural machinery positioning
Fleet management systems

Procurement Notes

Verify the specific suffix 'A' in the part number AA.166.A.301111 against the manufacturer's current datasheet to confirm cable length and connector specifications. Ensure compatibility with existing SMA male interfaces. Check for any recent product change notices or obsolescence alerts from Taoglas Limited before finalizing procurement decisions.

Selection Notes

Select this model when multi-constellation accuracy is required for mobile platforms. The IP67 rating makes it suitable for harsh environmental conditions compared to standard indoor antennas. Consider the magnetic mount constraint if permanent mounting solutions are preferred. Verify that the integrated LNA power requirements align with the host receiver's supply capabilities.

Part Context

This component belongs to the Ulysses series of miniature super low profile antennas by Taoglas. It represents a specialized RF solution designed for integration into compact mobile devices where space constraints and environmental exposure are critical factors. The series focuses on providing high positioning accuracy through advanced patch antenna technology.
