AA.185.301111

$39.07

Description：ADHESIVE MOUNT, LOW PROFILE, SIN
Series：Magma
Mfr：Taoglas Limited
Package：Bag

SKU:834c70308ece Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：ADHESIVE MOUNT, LOW PROFILE, SIN
Series：Magma
Mfr：Taoglas Limited
Package：Bag
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.575GHz, 1.562GHz, 1.603GHz
Frequency Range：1.565GHz ~ 1.586GHz, 1.559GHz ~ 1.565GHz, 1.596GHz ~ 1.61GHz
Antenna Type：Module
Number of Bands：3
VSWR：2
Return Loss：-
Gain：3.52dBi, 2.8dBi, 3.11dBi
Features：Cable - 3m, LNA, Filter
Termination：SMA Male
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：0.591" (15.00mm)
Applications：BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS
Power - Max：-

Download product information

AA.185.301111

Overview

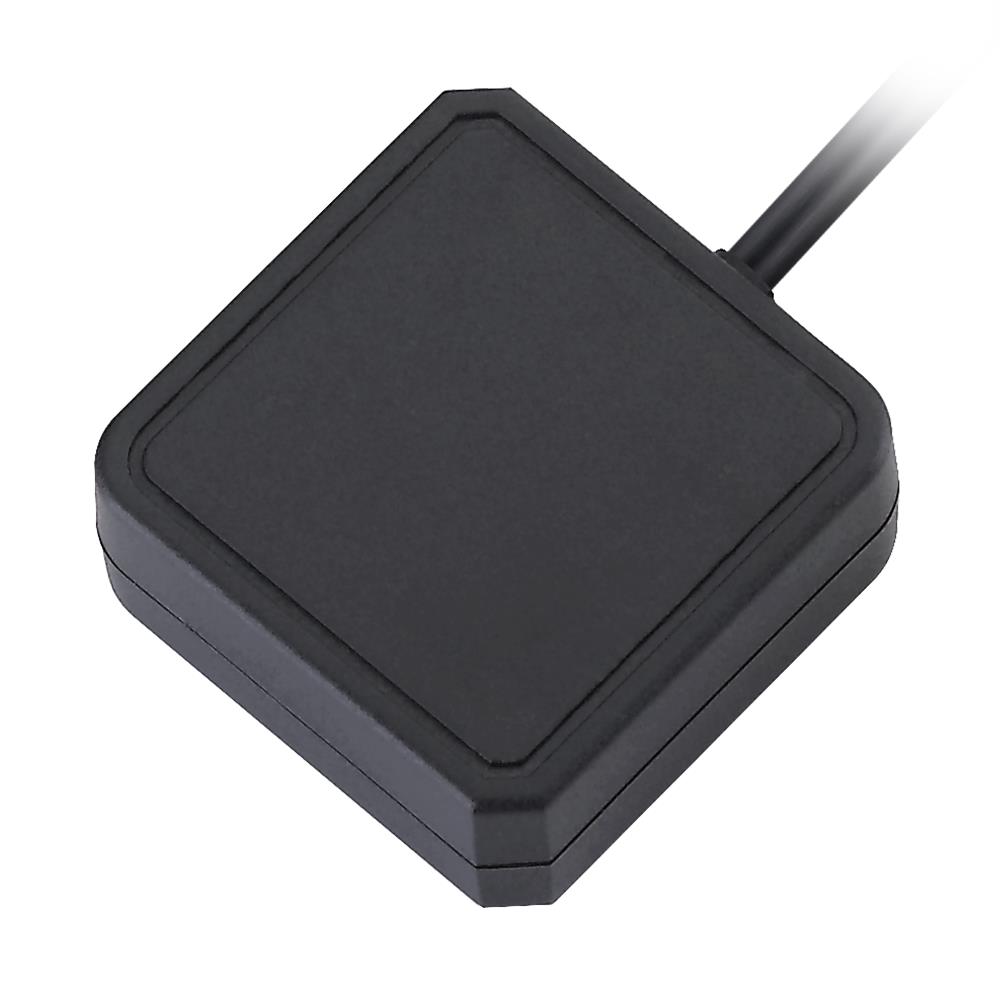

The AA.185.301111 is a magnetic mount GNSS antenna manufactured by Taoglas Limited, designed for global positioning applications. It operates within the frequency range of 1.596 GHz to 1.61 GHz, supporting GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS systems. The unit features an integrated Low Noise Amplifier (LNA) and provides a gain of 3.11 dBi. It utilizes an SMA male connector and includes a 3-meter cable with LNA termination.

Feature Summary

Supports multiple global satellite navigation constellations including GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS.
Integrates a Low Noise Amplifier (LNA) to enhance signal reception performance.
Features a magnetic mounting base for flexible installation on ferromagnetic surfaces.

Applications

GPS tracking devices
GNSS navigation modules
M2M communication equipment

Procurement Notes

Verify that the required operating frequency aligns with the 1.596 GHz to 1.61 GHz specification. Confirm compatibility with the SMA male connector interface and ensure the 3-meter cable length meets system layout requirements. Check for LNA power supply needs if applicable to the host circuit design.

Selection Notes

Select this model when broad multi-constellation support is required for outdoor or mobile applications. The magnetic mount facilitates easy deployment without permanent fixtures. Ensure the application environment allows for adequate sky visibility to maintain optimal GNSS signal acquisition.

Part Context

This component belongs to the Taoglas RF Antenna portfolio, specifically categorized as an outdoor GNSS antenna. It is part of the manufacturer's cellular and navigation antenna solutions designed for robust wireless connectivity in various M2M and IoT scenarios.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify functional equivalence carefully if considering alternative models from other manufacturers.
