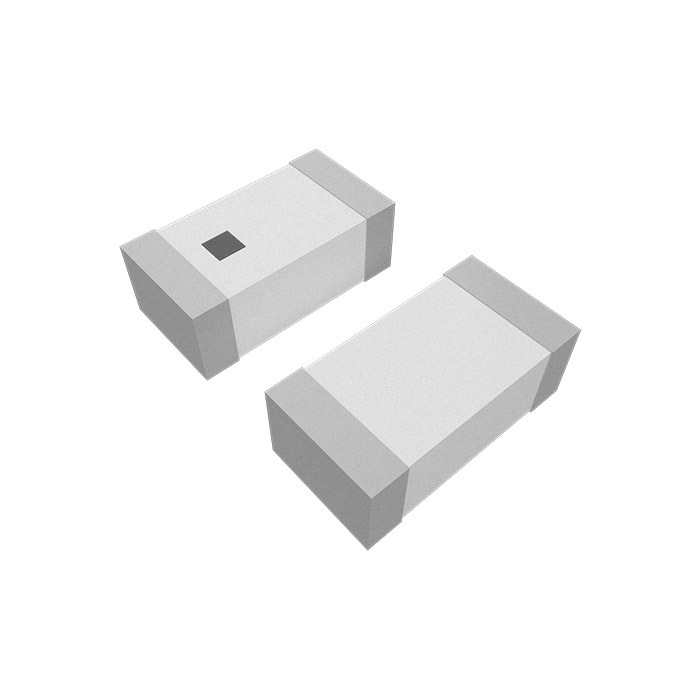

AANI-CH-0136-Q-T is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT UWB CHIP SOLDER. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AANI-CH-0136-Q-T
- Description：RF ANT UWB CHIP SOLDER
- Series：-
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：General ISM
- Frequency Group：Wide Band
- Frequency (Center/Band)：6.489GHz, 6.988GHz, 7.488GHz, 7.987GHz
- Frequency Range：6.24GHz ~ 6.739GHz, 6.739GHz ~ 7.238GHz, 7.238GHz ~ 7.738GHz, 7.738GHz ~ 8.237GHz
- Antenna Type：Chip
- Number of Bands：4
- VSWR：1.3, 1.4
- Return Loss：-17.2dB, -15.9dB, -15.6dB, -15.1dB
- Gain：3.2dBi, 3.9dBi, 3.9dBi, 3.2dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：Automotive
- Qualification：AEC-Q200
- Mounting Type：Surface Mount
- Height (Max)：0.043" (1.10mm)
- Applications：UWB
- Power - Max：3 W
Antennas RF datasheet and documents for AANI-CH-0136-Q-T
Antennas RF Overview
The AANI-CH-0136-Q-T is a UWB chip antenna manufactured by Abracon LLC, designed for surface mount applications. It operates within the frequency range of 6.4895 GHz to 7.9875 GHz. The component features a compact case size of 3.2mm x 1.6mm x 1.1mm and utilizes a solder termination method. This part is specified for automotive environments, adhering to AEC-Q200 qualification standards to ensure reliability in demanding conditions.
Antennas RF Feature Summary
- Automotive-grade reliability with AEC-Q200 qualification
- Ultra-wideband operation supporting 6.24-8.24 GHz spectrum
- Compact surface-mount package for space-constrained designs
Antennas RF Applications
- Automotive keyless entry systems
- In-cabin sensing applications
- UWB positioning and tracking modules
Antennas RF Procurement Notes
Verify that the specific suffix 'Q' denotes AEC-Q200 automotive qualification when sourcing. Confirm the operating frequency matches the required 6.4895/7.9875 GHz bands for your UWB implementation. Ensure PCB layout guidelines from the official datasheet are followed to maintain impedance matching and radiation efficiency.
Antennas RF Selection Notes
Select this component for automotive UWB projects requiring certified reliability. Compare against other AANI-CH series models if different frequency bands or gain specifications are needed. Consider the small footprint for integration into dense automotive PCBs where larger antennas cannot fit.
Antennas RF Part Context
This model belongs to Abracon's AANI-CH series of automotive chip antennas. It is distinct from Bluetooth/Wi-Fi variants like the AANI-CH-0070-Q-T due to its specific UWB frequency targeting. The Q-series designation indicates compliance with automotive quality standards, differentiating it from standard commercial grade components.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing RF front-end circuits before considering alternative UWB antennas.
