AC31700-01A

Antennas RF Overview

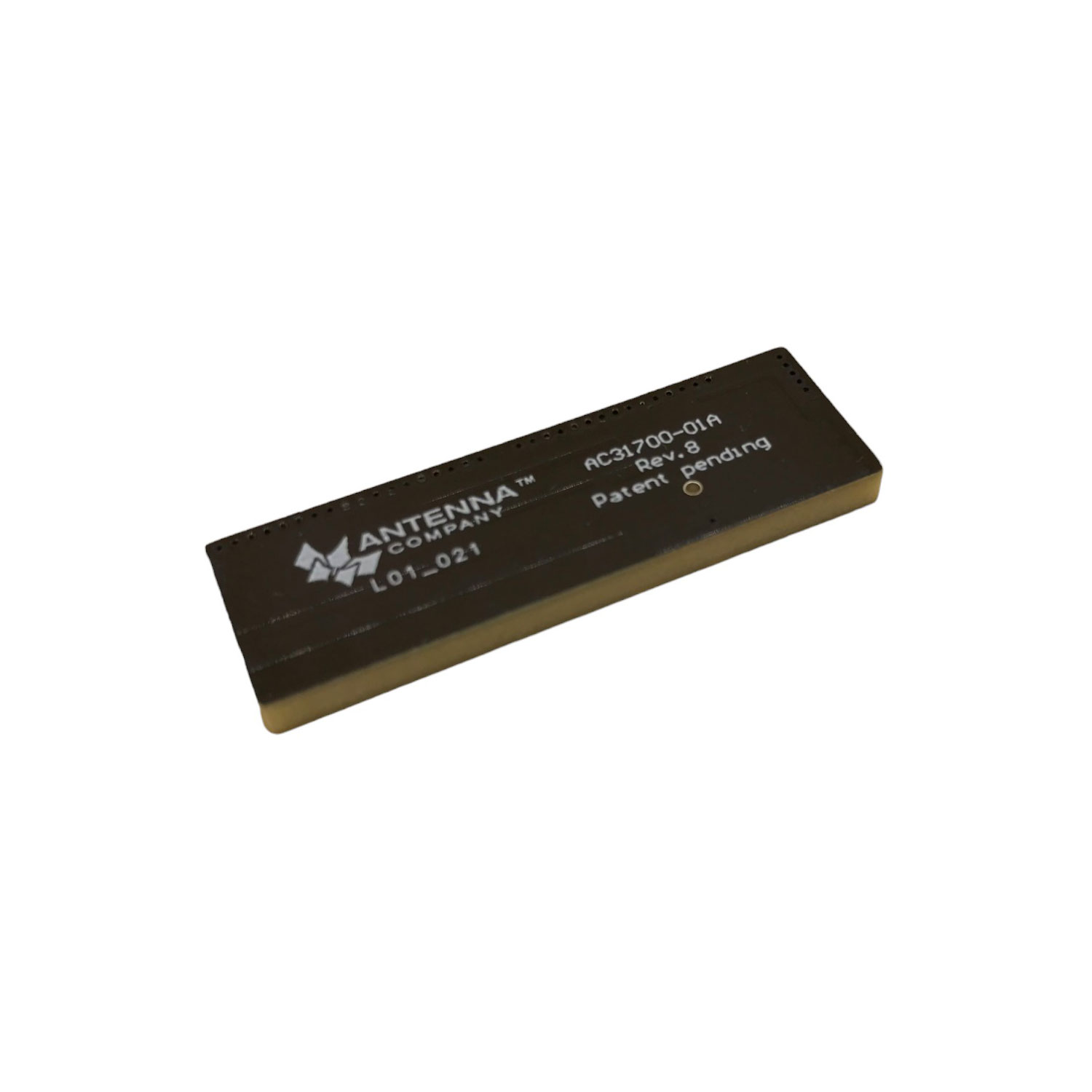

The AC31700-01A is a high-efficiency, wideband surface-mount device (SMD) antenna manufactured by The Antenna Company. It supports multiple cellular standards including 5G, 4G LTE, Cat-M1, NB-IoT, and UMTS. The component operates across six frequency bands: 698–960 MHz, 1100–1300 MHz, 1525–1660 MHz, 1710–2690 MHz, 3400–3800 MHz, and 5000–6000 MHz. Designed for IoT applications, it accommodates devices with varying ground plane sizes.

Antennas RF Feature Summary

• High efficiency wideband design covering 5G and 4G LTE frequencies
• Surface mount package suitable for embedded systems
• Optimized performance on IoT devices with small or large ground planes

Antennas RF Applications

• IoT devices requiring multi-band cellular connectivity
• Industrial automation equipment
• Embedded electronic systems

Antennas RF Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required frequency bands and mounting configurations. Confirm that the selected variant matches the intended application's ground plane constraints. Cross-reference the manufacturer part number with official distributor catalogs to avoid counterfeit components. Ensure the procurement channel provides valid traceability documentation for quality assurance purposes.

Antennas RF Selection Notes

Select this component when broad frequency coverage from sub-GHz to 6 GHz is required in a compact SMD form factor. Consider the AC31700-01B booster element if the target device utilizes a significantly reduced ground plane to achieve optimal radiation efficiency. Evaluate spatial constraints within the host PCB layout to accommodate the antenna footprint and clearance requirements.

Antennas RF Part Context

This model belongs to a family of wideband antennas designed for modern cellular communications. It complements the AC31700-01B, which serves as a dedicated booster element. Together, these components address challenges related to signal integrity in space-constrained IoT modules where traditional antenna designs may underperform due to limited ground plane availability.

Antennas RF Replacement Considerations

The AC31700-01B is documented as a compatible booster element for this antenna. No direct single-part replacements are explicitly confirmed in public data. Verify mechanical dimensions and impedance matching before substituting with other wideband SMD antennas.
