ACA-103-T

$0.31

Description：RF ANT 2.4GHZ/5.5GHZ CHIP SLD
Series：-
Mfr：Abracon LLC
Package：Tape & Reel (TR)

SKU:d0db4196625e Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ACA-103-T is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 2.4GHZ/5.5GHZ CHIP SLD. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ACA-103-T

Description：RF ANT 2.4GHZ/5.5GHZ CHIP SLD
Series：-
Mfr：Abracon LLC
Package：Tape & Reel (TR)
RF Family/Standard：Bluetooth, WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.4GHz, 5.5GHz
Frequency Range：2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.825GHz
Antenna Type：Chip
Number of Bands：2
VSWR：3
Return Loss：-
Gain：-1.37dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.047" (1.20mm)
Applications：Bluetooth, WLAN
Power - Max：-

Antennas RF datasheet and documents for ACA-103-T

ACA-103-T

Antennas RF Overview

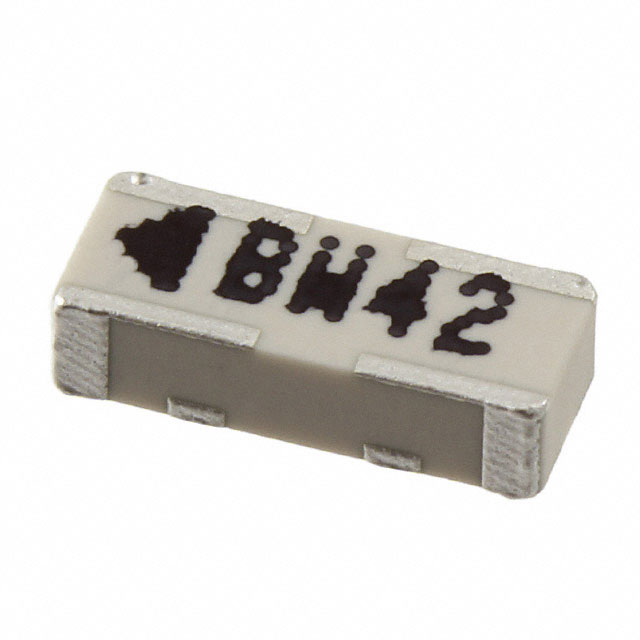

The ACA-103-T is a dual-band chip antenna manufactured by Abracon LLC, designed for Bluetooth and WLAN applications. It operates within the frequency ranges of 2.4GHz to 2.485GHz and 5.15GHz to 5.825GHz. The component features a surface mount solder termination and provides a gain of -1.37dBi with an impedance of 50 Ohms.

Antennas RF Feature Summary

Dual-band operation supporting both Bluetooth and WLAN standards
Compact chip antenna design suitable for surface mount assembly

Antennas RF Applications

Bluetooth devices
WLAN equipment

Antennas RF Procurement Notes

Verify authenticity carefully as this component has been identified in market reports with significant counterfeit risks. Confirm part number accuracy against official Abracon documentation to avoid receiving non-compliant or fake units during procurement processes.

Antennas RF Selection Notes

Select this component for compact wireless designs requiring dual-band support. Ensure the application environment matches the specified frequency ranges and that surface mount soldering capabilities are available for the termination type.

Antennas RF Part Context

This RF antenna belongs to the Abracon LLC family of chip antennas intended for short-range wireless communications. It serves as a passive radiating element integrated into electronic circuits for signal transmission and reception.
