ACAG0301-15752450-T

Antennas RF Overview

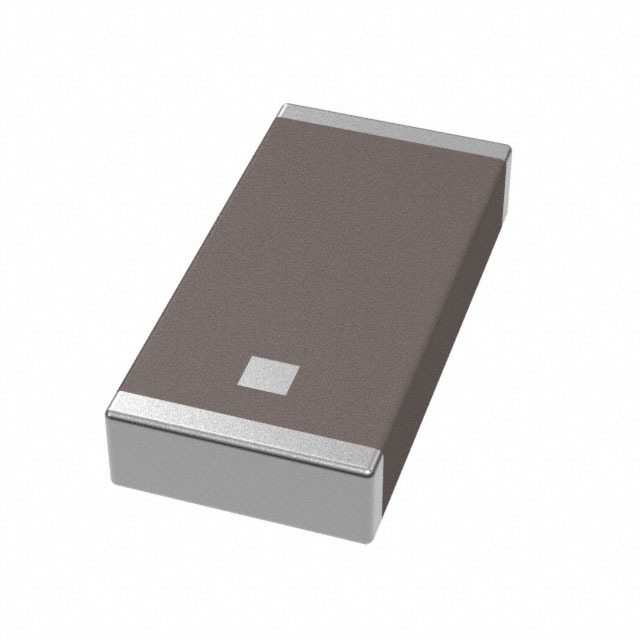

The Abracon ACAG0301-15752450-T is a dual-band surface-mount chip antenna designed for global navigation satellite systems and wireless local area networks. It operates at center frequencies of 1.575 GHz and 2.45 GHz, covering GPS/GLONASS and Wi-Fi/Bluetooth bands respectively. The component utilizes low-temperature co-fired ceramic (LTCC) technology to achieve a compact form factor measuring 3.2 mm x 1.6 mm x 1.2 mm. It provides an omni-directional radiation pattern with a typical gain of 4.05 dBi across its operational range.

Antennas RF Feature Summary

• Dual-band operation supporting both GNSS and ISM/Wi-Fi protocols
• Compact LTCC construction for space-constrained designs
• Omni-directional radiation characteristics

Antennas RF Applications

• GPS and GLONASS receiver modules
• Wi-Fi enabled IoT devices
• Bluetooth Low Energy (BLE) peripherals

Antennas RF Procurement Notes

Verify the specific revision level and tape-and-reel packaging configuration prior to ordering. Confirm that the receiving facility has appropriate ESD handling procedures for surface-mount components. Ensure the PCB footprint matches the manufacturer's recommended land pattern to maintain impedance matching and mechanical stability during reflow soldering processes.

Antennas RF Selection Notes

Select this component when a single antenna element must support multiple frequency bands within strict spatial limitations. The LTCC technology offers reliable performance in various environmental conditions. Consider the physical height constraint of 1.2 mm when designing stacked or thin-profile enclosures for mobile or wearable applications requiring combined positioning and connectivity.

Antennas RF Part Context

This model belongs to Abracon's ACAG series of miniature RF antennas. The series focuses on providing high-performance solutions for modern wireless standards while minimizing board space. The ACAG0301-15752450-T specifically addresses the need for integrated GNSS and short-range communication capabilities in a unified package.

Antennas RF Replacement Considerations

Direct substitutes include other dual-band LTCC chip antennas from manufacturers such as Murata or TDK. Verify that alternative parts match the 3.2x1.6mm footprint and have comparable VSWR specifications at 1.575 GHz and 2.45 GHz to ensure system compatibility.
