ACAG1204-868-T

Antennas RF Overview

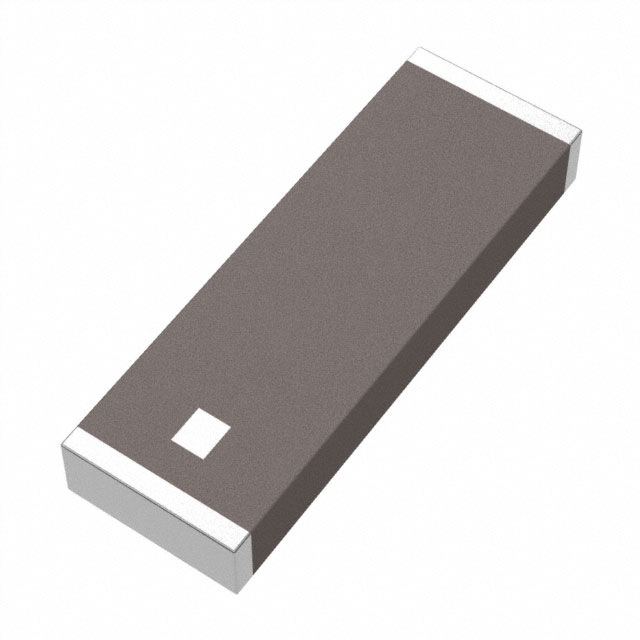

The ACAG1204-868-T is a ceramic chip antenna designed for operation at the 868 MHz frequency band. It features a linear radiation pattern and provides a gain of 2.63 dBi with an impedance of 50 Ohms. The physical dimensions are 12.0 mm in length, 4.0 mm in width, and 1.6 mm in height. The component supports a bandwidth of 20 MHz and is suitable for applications requiring compact RF solutions.

Antennas RF Feature Summary

• Utilizes ceramic material construction for stable RF performance
• Designed for linear polarization applications
• Optimized for 50 Ohm impedance matching systems

Antennas RF Applications

• RFID systems
• ISM band communication devices
• Wireless sensor networks

Antennas RF Procurement Notes

Verify that the specific order matches the Abracon part number ACAG1204-868-T to ensure correct frequency and form factor. Confirm RoHS compliance status and SVHC declarations against current manufacturer documentation prior to procurement. Ensure storage conditions align with moisture sensitivity levels specified in the official datasheet to maintain component integrity before assembly.

Antennas RF Selection Notes

Select this component when a low-profile, surface-mount antenna is required for 868 MHz operations. The 12x4x1.6 mm package size allows for integration into space-constrained PCB layouts. Consider the 2.63 dBi gain and linear polarization characteristics when designing the RF front-end to ensure adequate link budget and signal coverage for the intended application environment.

Antennas RF Part Context

This component belongs to the ACAG series of ceramic chip antennas manufactured by Abracon Corporation. These antennas are engineered for industrial, scientific, and medical (ISM) radio bands. The series offers various frequency options tailored for different regional regulatory requirements and application-specific bandwidth needs within the global wireless communication landscape.

Antennas RF Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. When evaluating alternatives, ensure the replacement antenna matches the 868 MHz center frequency, 50 Ohm impedance, and similar physical dimensions to maintain PCB layout compatibility and RF performance equivalence.
