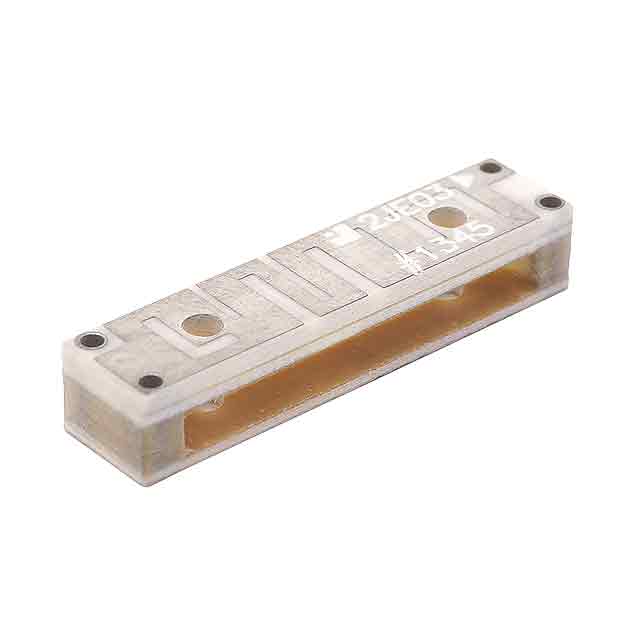

ACAJ-109-T

$7.56

Description：RF ANT 850MHZ/900MHZ CHIP SLD
Series：ACAJ
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:2987d40db4fd Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ACAJ-109-T is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 850MHZ/900MHZ CHIP SLD. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ACAJ-109-T

Description：RF ANT 850MHZ/900MHZ CHIP SLD
Series：ACAJ
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range：824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type：Chip
Number of Bands：5
VSWR：3.5, 3
Return Loss：-
Gain：6.4dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.173" (4.40mm)
Applications：GSM, UMTS
Power - Max：-

Antennas RF datasheet and documents for ACAJ-109-T

ACAJ-109-T

Antennas RF Overview

The ACAJ-109-T is a multi-band chip antenna manufactured by Abracon LLC, designed for surface-mount integration. It supports GSM, UMTS, and LTE frequency ranges with a minimum operating frequency of 824 MHz and a maximum of 2.17 GHz. The component features a linear polarization type and a nominal impedance of 50 ohms. Its physical dimensions are specified as 24.0 mm in length, 5.5 mm in width, and 4.4 mm in height. The device is classified as an external embedded antenna suitable for mobile communication applications.

Antennas RF Feature Summary

Multi-band capability supporting GSM, UMTS, and LTE standards
Surface-mount construction for PCB integration
Linear polarization configuration
Tunable design via matching circuit modification

Antennas RF Applications

GSM mobile communication devices
UMTS cellular handsets
LTE-enabled portable electronics
Embedded wireless modules

Antennas RF Procurement Notes

Verify the specific datasheet version to confirm mechanical tolerances and soldering profile requirements. Ensure the supply chain source provides official Abracon documentation to validate the part number suffix and manufacturing origin. Cross-reference the impedance and frequency specifications against the target design parameters before finalizing procurement orders.

Antennas RF Selection Notes

Select this component when designing for GSM, UMTS, or LTE bands requiring a compact surface-mount solution. Consider the 24.0 x 5.5 x 4.4 mm footprint during layout planning. Evaluate the need for matching circuit adjustments to tune the antenna for specific operational bands within the 824 MHz to 2.17 GHz range.

Antennas RF Part Context

This model belongs to Abracon's RF antenna portfolio, specifically targeting cellular communication markets. It serves as an embedded solution for mobile devices requiring reliable signal transmission across multiple frequency bands. The product line emphasizes compact form factors suitable for modern handheld electronics.
