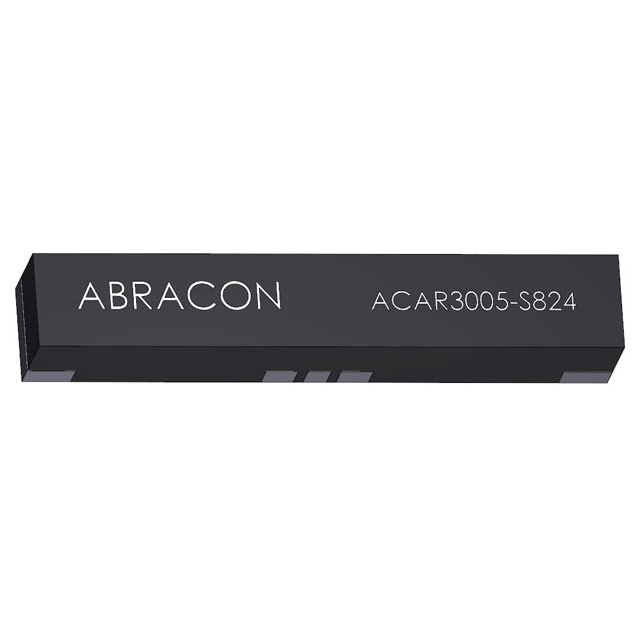

ACAR3005-S824 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is 2G/3G/GSM CERAMIC CHIP ANT. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for ACAR3005-S824
- Description：2G/3G/GSM CERAMIC CHIP ANT
- Series：ACAR
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：Cellular
- Frequency Group：UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：892MHz, 1.94GHz
- Frequency Range：824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
- Antenna Type：Chip
- Number of Bands：2
- VSWR：3
- Return Loss：-
- Gain：-0.18dBi, 0.1dBi, 0.55dBi, 0.77dBi, 1.78dBi, 2.08dBi, 2.12dBi, 2.7dBi, 3.03dBi, 3.12dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.197" (5.00mm)
- Applications：2G, 3G, DCS, GSM, PCS, UMTS
- Power - Max：-
Antennas RF datasheet and documents for ACAR3005-S824
Antennas RF Overview
The ACAR3005-S824 is a ceramic chip antenna from the Abracon ACAR series, designed for surface mount installation. It operates within frequency ranges of 824-960 MHz and 1.71 GHz, supporting cellular protocols including GSM, LTE, 2G, 3G, and 4G. The component measures 30.0 x 5.0 x 5.0 mm with a maximum height of 5.00 mm. It features a 50-ohm impedance and an edge-mount configuration. The device provides a gain of 3.12 dBi and supports applications in DCS, PCS, and UMTS systems.
Antennas RF Feature Summary
- Edge-mount ceramic construction for embedded integration
- Supports multiple cellular protocol standards
- Surface mount package design
Antennas RF Applications
- GSM mobile devices
- LTE connectivity modules
- UMTS handsets
- DCS and PCS communication equipment
Antennas RF Procurement Notes
Verify the specific datasheet version when ordering, as specifications may vary between revisions. Confirm that the 5-pin tape-and-reel packaging matches your automated assembly requirements. Ensure the supplier provides official Abracon documentation to validate the part number suffix and environmental compliance status before finalizing procurement.
Antennas RF Selection Notes
Select this component for designs requiring a low-profile, edge-mounted solution for multi-band cellular operations. The 30mm length accommodates larger form factors, while the 5mm height suits thin device profiles. Consider the 50-ohm impedance matching during PCB layout to optimize signal transmission efficiency for GSM and LTE bands.
Antennas RF Part Context
This part belongs to the Abracon ACAR series of passive cellular antennas. It is engineered for robust performance in compact electronic devices requiring reliable wireless connectivity across various global cellular standards.
Antennas RF Replacement Considerations
Consult official Abracon documentation for direct substitutes. Cross-reference dimensions and electrical characteristics carefully when evaluating alternative components.
