ACR1504I3

Antennas RF Overview

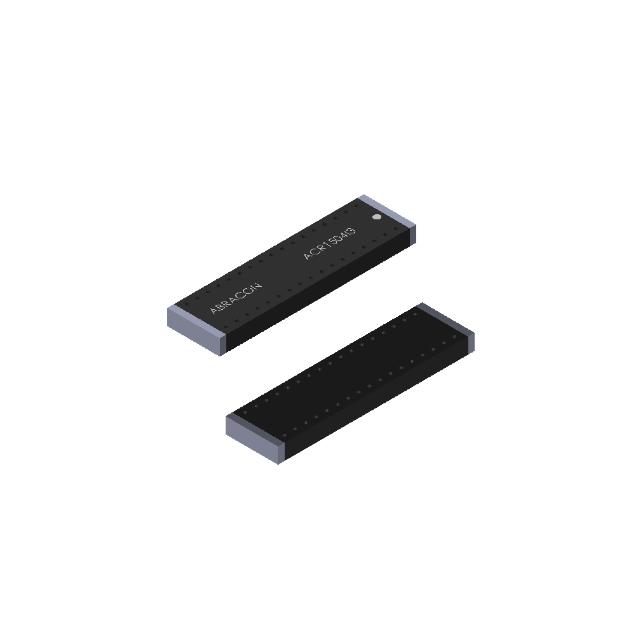

The ACR1504I3 is a multi-band chip RF antenna manufactured by Abracon LLC, designed for surface mount applications. It operates across three frequency bands within the UHF range (300MHz to 1GHz), specifically targeting 433 MHz, 868 MHz, and 915 MHz ISM frequencies. The component features a maximum height of 0.047 inches (1.20mm) and utilizes solder termination. It exhibits a Voltage Standing Wave Ratio (VSWR) of 2 and an impedance of 50 Ohms. The antenna provides varying gain levels across its bands, including 1.75 dBi at 433 MHz, -4.4 dBi at 868 MHz, and 2.11 dBi at 915 MHz.

Antennas RF Feature Summary

• Supports three distinct frequency bands: 433 MHz, 868 MHz, and 915 MHz
• Designed for Low Power Wide Area Network (LPWAN) and ISM applications
• Compact surface mount package with 1.20mm maximum height

Antennas RF Applications

• ISM band wireless communication systems
• Low Power Wide Area Network (LPWAN) devices
• UHF radio frequency transceivers

Antennas RF Procurement Notes

Verify that the specific part number matches the required frequency bands for your design. Confirm surface mount compatibility and soldering requirements. Ensure the 50-ohm impedance aligns with your RF circuit layout. Check RoHS compliance status if environmental regulations apply to your production. Validate physical dimensions against your PCB footprint constraints.

Antennas RF Selection Notes

Select this component when a single antenna solution is needed for multiple UHF ISM bands. Consider the compact form factor for space-constrained designs. Evaluate the VSWR performance relative to system efficiency requirements. Compare gain specifications across the 433, 868, and 915 MHz bands to ensure adequate coverage for each target frequency.

Antennas RF Part Context

This component belongs to the ACR series of antennas from Abracon LLC. It is categorized under RF antennas and specifically targets the UHF frequency group. The product is listed as active and available in tape and reel packaging options, facilitating automated assembly processes for high-volume manufacturing.

Antennas RF Replacement Considerations

The ACR1504I3-EVB-A is an evaluation board associated with this antenna, not a direct replacement. No other specific substitute part numbers are confirmed in the provided documentation.
