ACTPAT154-01-IP

Antennas RF Overview

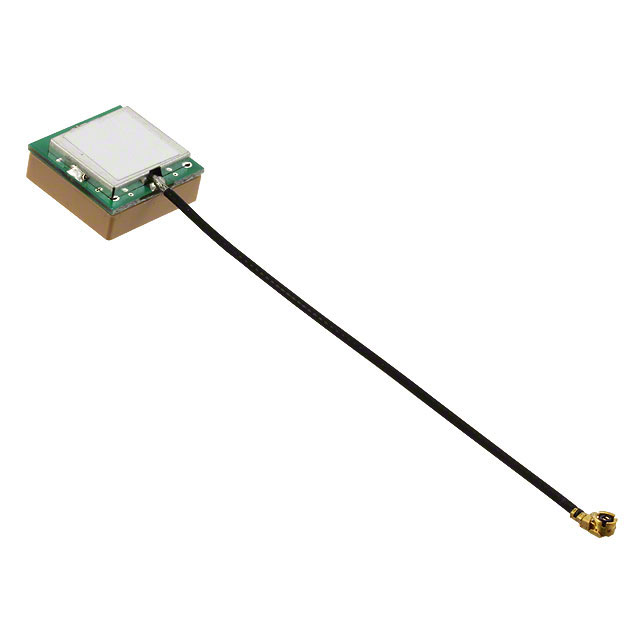

The ACTPAT154-01-IP is a GPS ceramic active antenna manufactured by Inventek Systems. It operates at a center frequency of 1.575 GHz with a gain of 0.5 dBi and impedance of 50 Ω. The unit features a U.FL (UMCC) termination, surface mount mounting type, and includes an integrated LNA and a 63mm cable. Physical dimensions are 15.2 mm x 15.2 mm x 7.0 mm.

Antennas RF Feature Summary

• Integrated Low Noise Amplifier (LNA) for signal enhancement
• Ceramic construction for durability
• Surface mount design for PCB integration
• Includes 63mm cable with U.FL connector

Antennas RF Applications

• Automotive navigation systems
• Marine GPS receivers
• Aviation GPS receivers
• IoT asset tracking devices

Antennas RF Procurement Notes

Verify the specific ordering suffix to confirm included accessories such as cable length or connector type. Ensure compatibility with the target application's voltage requirements, typically 3-5 VDC. Confirm that the U.FL termination matches the host board interface. Check RoHS compliance status if required by project specifications.

Antennas RF Selection Notes

Select this component when a compact, high-performance GPS solution is required. The active design with LNA supports weak signal environments. Consider the physical footprint of 15.2 mm x 15.2 mm for space-constrained designs. Verify power supply constraints against the 3-5 VDC operating range.

Antennas RF Part Context

This part belongs to the Inventek Systems ACTPAT series of RF antennas. It is designed specifically for GPS/GNSS applications requiring reliable signal reception. The product line offers various customization options from standard SiP to module-based solutions.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Inventek Systems directly for cross-reference recommendations.
