ADA4310-1ARHZ

Overview

The ADA4310-1ARHZ is a dual-channel, high-speed current feedback operational amplifier designed for broadband applications requiring high linearity and low impedance load driving. It features a -3 dB bandwidth of 190 MHz at G = +5 and a slew rate of 820 V/µs with a 50 Ω load. The device supports single supply voltages from +5 V to +12 V or dual supplies from ±2.5 V to ±6 V. It offers a differential output swing of 20.4 V p-p into a 100 Ω load and achieves typical distortion of -95 dBc at 1 MHz. Integrated power management allows operation in full, medium, low, or shutdown modes via CMOS-compatible control pins.

Feature Summary

• High-speed current feedback architecture providing wide bandwidth and fast slew rates for demanding broadband signal processing.
• Integrated power management system enabling four distinct operating modes including complete shutdown with high-impedance outputs.
• CMOS-compatible power-down control inputs allowing flexible optimization of quiescent current consumption based on application needs.

Applications

• Home networking line drivers
• Twisted pair line drivers
• Power line communications
• Video line drivers

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct package type and RoHS compliance status. Confirm that the exposed thermal pad connection requirements are met during PCB layout to maintain electrical functionality and thermal performance. Cross-reference the part number with the latest datasheet revision to validate all dynamic and DC specifications before finalizing procurement decisions.

Selection Notes

Select this component when designing circuits that require high output current capability combined with precise linearity for low impedance loads. Ensure the design accommodates the recommended feedback resistor values to maintain stability and achieve the specified bandwidth. Consider the available power modes if system-level power efficiency is a critical constraint for the target application environment.

Part Context

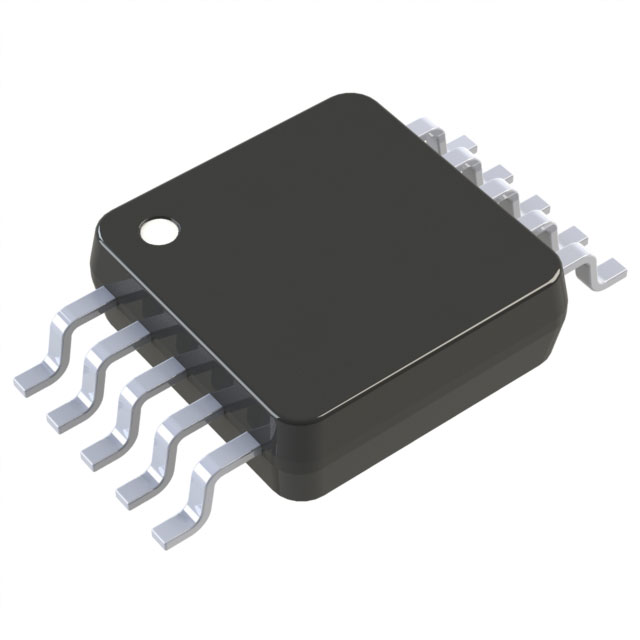

This device belongs to the ADA4310-1 series of dual channel amplifiers manufactured by Analog Devices Inc. It is specifically engineered as a low-cost solution for line driver applications where high speed and high current drive are necessary. The ARHZ suffix indicates the 10-lead Mini Small Outline Package with an exposed paddle, distinguishing it from other package options within the same product family.

Replacement Considerations

Consult the manufacturer's official replacement guide for verified substitute part numbers. Do not assume functional equivalence with other models without verifying pinout compatibility and electrical specifications against the current datasheet.

FAQ

How does the exposed thermal pad function in the 10-lead MSOP package?

In the 10-lead MSOP package, the exposed thermal pad serves as the reference for the power-down pins and provides the only electrical connection for the negative supply voltage. It must be connected to ground for the device to operate correctly.

What determines the closed-loop bandwidth and stability of the ADA4310-1?

The feedback resistor directly impacts the closed-loop bandwidth and stability. Reducing the resistance below the recommended value can cause peaking or instability, while increasing it reduces bandwidth. The recommended feedback resistor value is 499 Ω.
