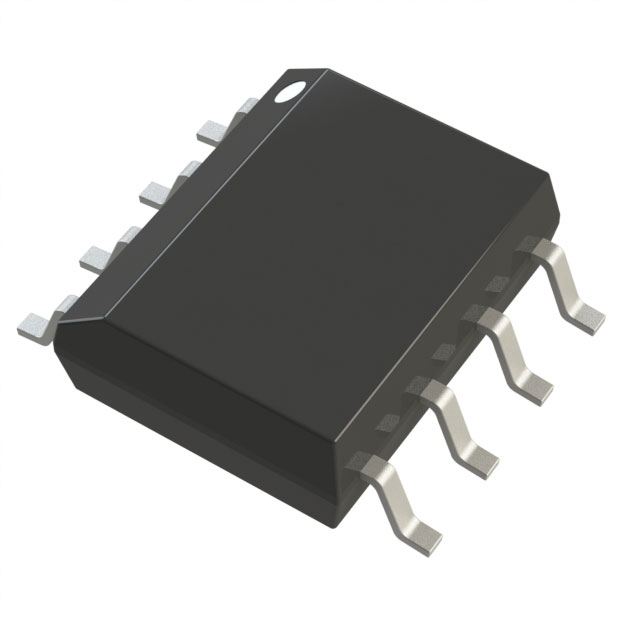

ADA4700-1ARDZ-RL

$3.70

Description：IC OPAMP GP 1 CIRCUIT 8SOIC
Series：-
Mfr：Analog Devices Inc.
Package：Tape & Reel (TR)

SKU:5a749c2ba181 Category: Instrumentation, Op Amps, Buffer Amps Brand: Analog Devices Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC OPAMP GP 1 CIRCUIT 8SOIC
Series：-
Mfr：Analog Devices Inc.
Package：Tape & Reel (TR)
Amplifier Type：General Purpose
Number of Circuits：1
Output Type：Rail-to-Rail
Slew Rate：20V/µs
Gain Bandwidth Product：3.5 MHz
Current - Input Bias：15 nA
Voltage - Input Offset：200 µV
Current - Supply：1.7mA
Current - Output / Channel：72 mA
Voltage - Supply Span (Min)：10 V
Voltage - Supply Span (Max)：100 V
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-
Mounting Type：Surface Mount
Package / Case：8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package：8-SOIC-EP
-3db Bandwidth：-

Download product information

ADA4700-1ARDZ-RL

Overview

The ADA4700-1ARDZ-RL is a high voltage, precision operational amplifier manufactured by Analog Devices Inc. It features a single-channel design with a wide operating supply voltage range of ±5 V to ±50 V (10 V to 100 V total). Key electrical parameters include a typical input offset voltage of 200 µV, a maximum supply current of 1.7 mA, and an output current drive capability of 30 mA with a short-circuit limit of 72 mA. The device exhibits a typical slew rate of 20 V/µs and a gain bandwidth product of 3.5 MHz. It operates within an ambient temperature range of -40°C to +85°C and utilizes an 8-SOIC package with an exposed thermal pad.

Feature Summary

High voltage operation supporting dual supplies up to ±50 V
Precision performance with low input offset voltage and drift
Integrated thermal regulation and current limiting protection
Rail-to-rail output swing capability for maximizing signal-to-noise ratio

Applications

Automated and bench top test equipment
High voltage regulators and power amplifiers
Data acquisition and signal conditioning systems
Piezo drivers and predrivers
General-purpose current sensing circuits

Procurement Notes

Verify the specific ordering suffix ARDZ-RL against the manufacturer's official documentation to confirm the tape and reel packaging format and industrial temperature grade. Ensure that the component specifications align with the required system voltage and current constraints before finalizing procurement decisions.

Selection Notes

Select this component for applications requiring high voltage handling combined with precision DC accuracy. The device is suitable where unity-gain stability and phase inversion-free performance are critical. Consider the exposed pad requirement for proper thermal management when designing the PCB layout.

Part Context

This part belongs to the ADA4700 family of high voltage precision operational amplifiers from Analog Devices. It is designed to bridge the gap between standard op-amps and specialized high-voltage devices, offering robust performance in industrial and instrumentation environments.
