AEACAC025009-S2400

Antennas RF Overview

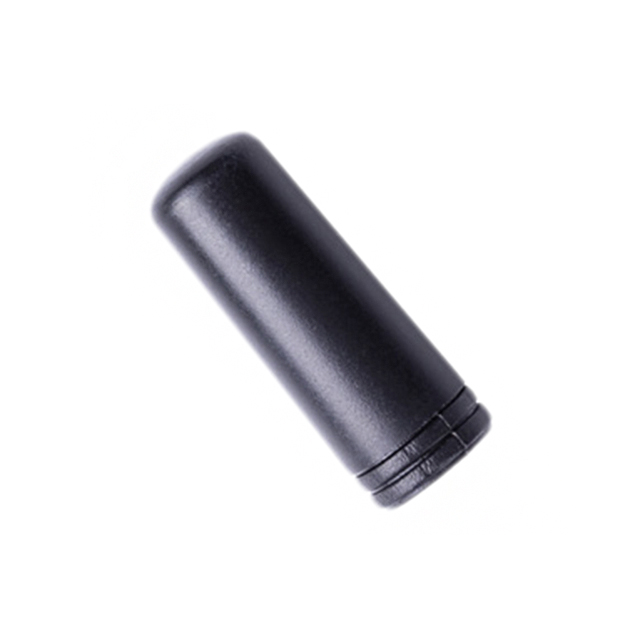

The Abracon AEACAC025009-S2400 is a 2.4 GHz external whip antenna designed for ISM and Wi-Fi applications. It features a straight SMA male connector mount and linear polarization. The center frequency is 2.44175 GHz, operating within the 2.4 GHz to 2.4835 GHz band. Key electrical specifications include a gain of 2 dBi, a voltage standing wave ratio (VSWR) of 2, and an input power rating of 10 W. The physical dimensions are 25.9 mm in length and 14.5 mm in height.

Antennas RF Feature Summary

• Designed for high-performance external wireless connectivity optimization at the 2.4 GHz frequency band.
• Utilizes a straight SMA male connector for secure mounting on portable and network devices.
• Provides linear polarization with a 2 dBi gain to enhance signal reception and transmission.

Antennas RF Applications

• Portable Devices
• Set Top Boxes
• Network Devices
• Smart Speakers
• IP Cameras & Surveillance

Antennas RF Procurement Notes

Verify the specific part number suffix against official Abracon documentation to ensure correct connector type and mechanical configuration. Confirm that the SMA male interface matches the host device requirements. Check for any updated revision codes or environmental compliance certifications prior to ordering to guarantee compatibility with current manufacturing standards.

Antennas RF Selection Notes

Select this component when a compact, external solution is required for 2.4 GHz ISM band operations. The 2 dBi gain and low VSWR make it suitable for applications needing reliable range without excessive size. Ensure the host system supports the SMA male interface and can accommodate the specified physical footprint of 25.9 mm length.

Antennas RF Part Context

This model belongs to Abracon's RF Antenna series, specifically targeting Wi-Fi and ISM band applications. It is engineered for integration into consumer electronics and networking hardware where space constraints limit internal antenna placement. The design focuses on balancing performance metrics with physical durability for end-user environments.

Antennas RF Replacement Considerations

Consult official Abracon substitution guides for direct equivalents. Verify that any alternative maintains the 2.4 GHz center frequency, SMA male connector, and compatible gain specifications to ensure seamless integration without redesigning the host enclosure or RF circuitry.

Antennas RF FAQ

What is the operating frequency range?

The antenna operates in the 2.4 GHz to 2.4835 GHz band, with a center frequency of 2.44175 GHz.

What is the maximum input power rating?

The maximum input power rating is 10 W.
