AEACAC049009-S2400

$5.80

Description：ANTENNA LOW PROFILE 2.4GHZ WHIP
Series：AEAC
Mfr：Abracon LLC
Package：Bulk

SKU:d293aa528a17 Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AEACAC049009-S2400 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is ANTENNA LOW PROFILE 2.4GHZ WHIP. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AEACAC049009-S2400

Description：ANTENNA LOW PROFILE 2.4GHZ WHIP
Series：AEAC
Mfr：Abracon LLC
Package：Bulk
RF Family/Standard：802.15.4, Bluetooth, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.44GHz
Frequency Range：2.4GHz ~ 2.4835GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2
Return Loss：-
Gain：2dBi
Features：Cable - 100mm
Termination：I-PEX
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：1.941" (49.30mm)
Applications：Bluetooth, ISM, Wi-Fi, Zigbee™
Power - Max：-

Antennas RF datasheet and documents for AEACAC049009-S2400

AEACAC049009-S2400

Antennas RF Overview

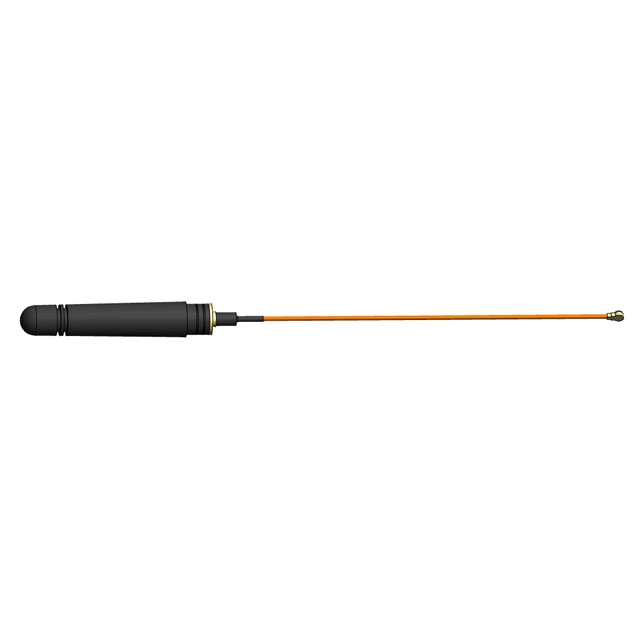

The Abracon AEACAC049009-S2400 is a passive external whip antenna designed for the 2.4 GHz ISM band, supporting frequencies from 2.4 GHz to 2.4835 GHz. It features an IPEX-1 female connector and a 100 mm RG178 cable. The unit measures 49.3 x Ø9.2 mm and supports Bluetooth (BLE), Wi-Fi, Zigbee, Thread, and 802.15.1 protocols.
