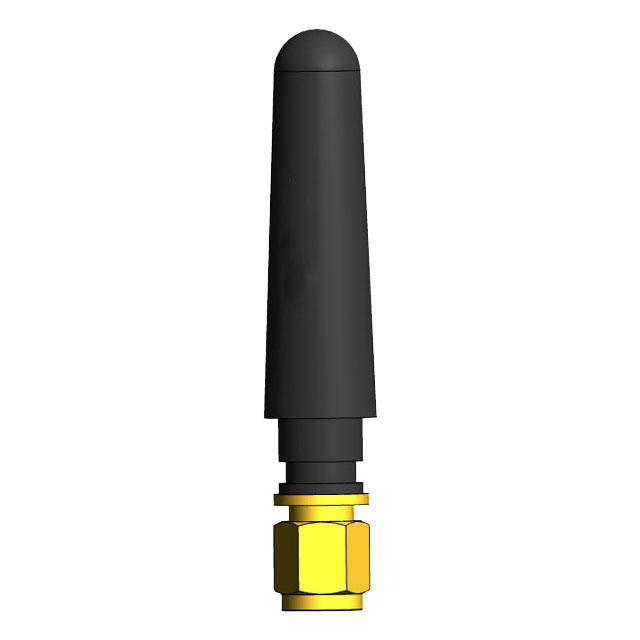

AEACAC053010Z-S433 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is ANTENNA AUTO 433MHZ EXT WHIP. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AEACAC053010Z-S433
- Description：ANTENNA AUTO 433MHZ EXT WHIP
- Series：AEAC
- Mfr：Abracon LLC
- Package：Bulk,Bulk
- RF Family/Standard：802.15.4, General ISM
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：433MHz
- Frequency Range：-
- Antenna Type：Whip, Tilt
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：2dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：2.102" (53.40mm)
- Applications：ISM, LoRa, Sigfox
- Power - Max：10 W
Antennas RF datasheet and documents for AEACAC053010Z-S433
Antennas RF Overview
The AEACAC053010Z-S433 is an automotive-grade passive monopole whip antenna manufactured by Abracon LLC. Designed for Sub-GHz ISM applications, it operates at a maximum frequency of 433 MHz with a linear polarization. The component features a 2 dBi gain and a 50 Ohm impedance, supporting a power rating of 10 W and a VSWR of 2. It utilizes an SMA male connector for panel mounting and measures 53.4 mm in length. The unit functions within a temperature range of -40 C to +125 C.
Antennas RF Feature Summary
- Automotive-grade construction suitable for harsh environments
- Tilt/swivel mechanical form factor for flexible installation
- Single-band operation optimized for 433 MHz ISM frequencies
Antennas RF Applications
- Automotive telematics systems
- Remote technology and monitoring
- Smart meter infrastructure
Antennas RF Procurement Notes
Verify the specific datasheet revision to confirm RoHS compliance details and exact physical dimensions prior to integration. Ensure the SMA male connector interface matches the receiving equipment port. Confirm that the operating temperature range meets the environmental requirements of the final assembly location. Cross-reference the part number suffix to guarantee the correct frequency band configuration.
Antennas RF Selection Notes
Select this component when an automotive-certified antenna is required for 433 MHz operations. The tilt/swivel design allows for optimal orientation adjustment during installation. Verify that the 10 W power handling capacity aligns with the transmitter output specifications. Ensure the panel mount style fits the available chassis space and structural constraints.
Antennas RF Part Context
This model belongs to the AEAC series of vehicle antennas from Abracon LLC. It is categorized under ISM antennas designed for M2M and IoT connectivity. The product line focuses on robust RF solutions for mobile and fixed automotive applications requiring reliable signal transmission in the Sub-GHz spectrum.
Antennas RF Replacement Considerations
Consult official manufacturer substitution guides for compatible alternatives. Verify that any replacement maintains the same SMA male connector type and 433 MHz operational frequency. Ensure the substitute part meets the same automotive-grade temperature and durability standards.
